Unlock the Power of Your Fishfinder. Mastering the Lowrance Hook Reveal 7x TripleShot: 15 Pro Tips for Optimal Fishfinding

How can you unlock the full potential of your Lowrance Hook Reveal 7x TripleShot fishfinder. What are the key features that make this device stand out. How can you interpret sonar readings effectively. What advanced settings can improve your fishing experience. How does proper maintenance ensure longevity and performance of your fishfinder.

Understanding the TripleShot Transducer Technology

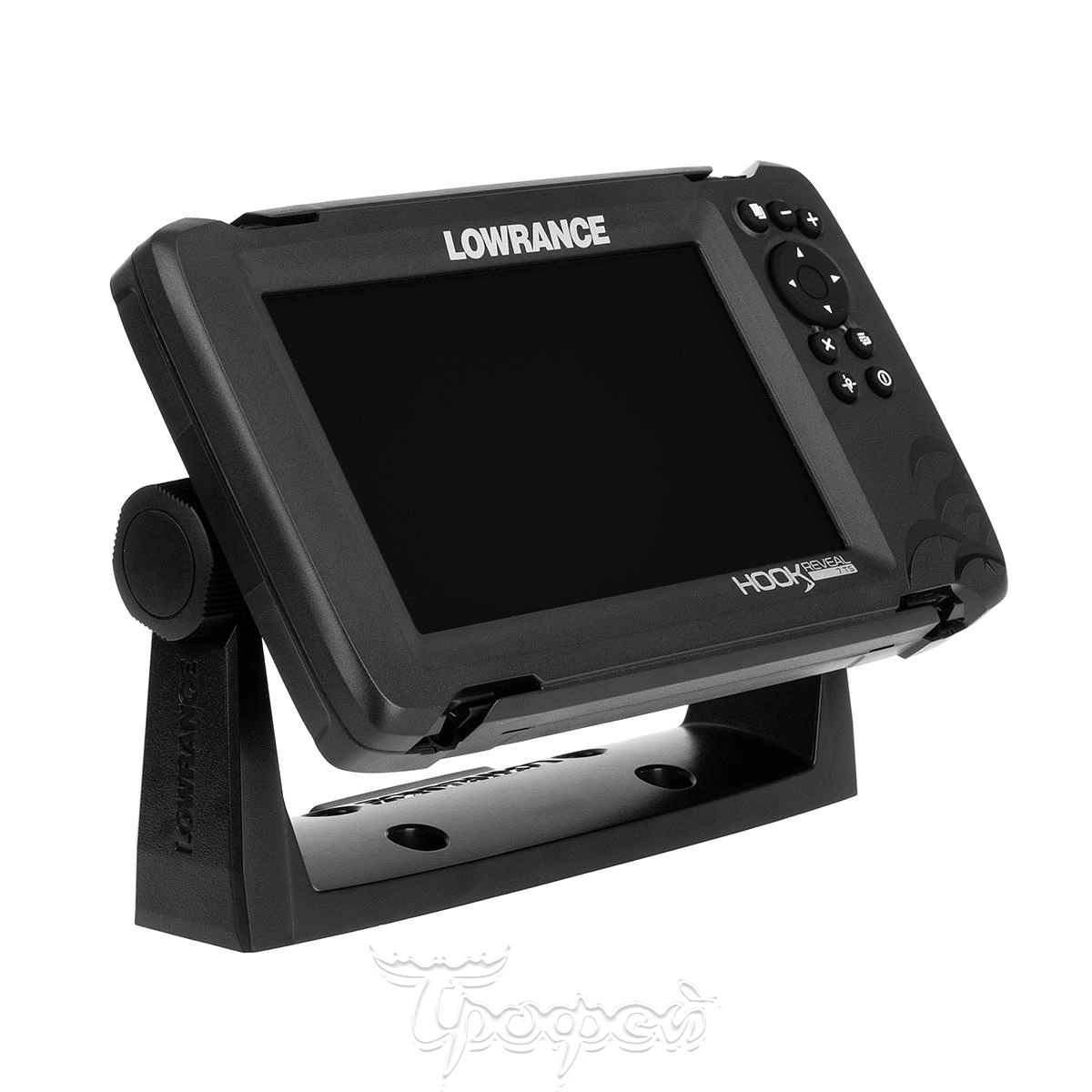

The Lowrance Hook Reveal 7x TripleShot fishfinder is a game-changer in the world of angling technology. At its core lies the innovative TripleShot transducer, a powerhouse that combines three distinct sonar technologies into one compact unit. This integration eliminates the need for multiple components, streamlining both installation and operation.

The TripleShot transducer offers:

• Traditional sonar for detailed views directly beneath your boat
• DownScan imaging for picture-like representations of the underwater environment
• SideScan imaging for a wider view of the surrounding waters

This trio of technologies provides anglers with an unprecedented level of underwater visibility, making it easier than ever to locate fish and understand the subaquatic terrain.

Harnessing the Power of Multiple Sonar Views

How do you effectively use these different sonar views? Each view serves a unique purpose in your fishing strategy. Traditional sonar excels at identifying fish arches and determining water depth. DownScan imaging offers crisp, photo-like images of structure and fish directly below your boat. SideScan extends your vision to either side of your vessel, helping you spot fish holding tight to structure or identify promising fishing spots without having to pass directly over them.

Decoding Sonar Readings: The Key to Successful Fishing

Interpreting sonar readings is an art that can significantly improve your fishing success. With practice, you’ll learn to distinguish between different types of returns on your screen.

Here’s what to look for:

• Fish arches: Curved lines that indicate the presence of fish
• Thick lines: Often represent structure on the bottom
• Clusters of small dots: May indicate schools of baitfish
• Large, solid returns: Could be large predatory fish

The Hook Reveal 7x TripleShot’s high-resolution display makes it easier to spot these telltale signs. As you gain experience, you’ll become adept at differentiating between species based on the size and shape of the sonar returns.

Fine-Tuning Your Sonar Settings

How can you optimize your sonar readings? Adjusting the sensitivity is crucial. If your display seems cluttered, reduce the sensitivity to focus on stronger returns. Conversely, if you’re struggling to see fish, increase the sensitivity to pick up fainter signals. Don’t forget to check the water temperature displayed on your unit – this information can help you target specific species that prefer certain temperature ranges.

Leveraging DownScan and SideScan for Enhanced Bottom Mapping

The DownScan and SideScan imaging modes of the Hook Reveal 7x TripleShot provide anglers with an almost photographic view of the underwater landscape. This detailed imaging can reveal subtle features that might be missed with traditional sonar alone.

What can you see with these imaging modes?

• Rock piles and ledges
• Submerged trees and stumps
• Changes in bottom composition
• Baitfish schools hugging structure
• Drop-offs and underwater channels

By understanding these bottom features, you can more effectively target fish that tend to hold near specific types of structure. For instance, walleye often prefer sharp drop-offs, while bass might be found near submerged vegetation or rocky areas.

Using Imaging to Avoid Hazards

Beyond finding fish, the detailed imaging provided by DownScan and SideScan can help you navigate safely. By revealing underwater obstacles and shallow areas, you can avoid potential hazards and protect your boat from damage. This feature is particularly valuable when fishing in unfamiliar waters or navigating tricky areas with submerged structure.

Customizing Your Display for Optimal Viewing

The Hook Reveal 7x TripleShot boasts a 7-inch color display that can be customized to suit various fishing conditions and personal preferences. By optimizing your display settings, you can ensure that you’re always getting the clearest, most useful information possible.

Key display customization options include:

• Adjustable backlight for different light conditions
• Day and night color modes
• Custom color palettes for personal preference
• Contrast adjustment for optimal clarity
• Split-screen views to monitor multiple sonar modes simultaneously

Experimenting with these settings can help you find the perfect configuration for your specific needs and fishing conditions. Remember, what works best may change depending on the time of day, weather conditions, and the type of fishing you’re doing.

Maximizing Split-Screen Functionality

How can you make the most of the split-screen feature? Consider pairing complementary views to get a more comprehensive picture of the underwater environment. For example, you might combine traditional sonar with DownScan imaging to see both fish arches and detailed bottom structure simultaneously. Alternatively, you could use a split between SideScan and a map view to scout for structure while maintaining navigational awareness.

Exploring Advanced Features for Pro-Level Performance

The Hook Reveal 7x TripleShot isn’t just for beginners – it offers a range of advanced features that can take your fishing to the next level. These options allow experienced anglers to fine-tune their sonar performance for specific fishing scenarios.

Some advanced features to explore include:

• Adjustable depth range for focusing on specific water columns
• Noise rejection filters to reduce interference
• Frequency adjustments for different water depths and conditions
• Custom presets for quick switching between configurations
• FishReveal technology for highlighting fish targets

By mastering these advanced settings, you can optimize your fishfinder’s performance for a wide range of fishing situations, from shallow flats to deep offshore waters.

Unlocking the Power of FishReveal

What makes FishReveal technology so useful? This feature combines the benefits of traditional sonar with the clarity of DownScan imaging. It overlays fish arches from traditional sonar onto the DownScan image, making it easier to distinguish fish from structure. This can be particularly helpful when fishing around heavy cover or in areas with complex bottom structure.

Enhancing Navigation with Mapping and GPS Integration

While the Hook Reveal 7x TripleShot is an excellent standalone fishfinder, its capabilities can be significantly expanded through the integration of detailed maps and external GPS units. This combination transforms your device into a comprehensive navigation and fish-finding system.

Benefits of map and GPS integration include:

• Access to detailed lake maps with depth contours
• Identification of known structure and fishing hotspots
• Improved position accuracy for precise navigation
• Ability to mark and return to productive fishing spots
• Route planning and tracking capabilities

Consider investing in premium mapping chips like LakeMaster or Navionics for access to highly detailed waterway information. These maps can provide invaluable insights into underwater structure and depth changes that can help you locate fish more effectively.

Maximizing Waypoint Functionality

How can you use waypoints to improve your fishing success? The Hook Reveal 7x TripleShot allows you to mark and save locations directly on the unit. Use this feature to tag productive fishing spots, underwater structure, or even hazards to avoid. By building a library of waypoints over time, you’ll create a personalized map of your favorite fishing areas, making it easier to return to productive spots on future trips.

Optimizing Transducer Placement for Peak Performance

The effectiveness of your fishfinder is heavily dependent on proper transducer placement. The TripleShot transducer requires clean, undisturbed water flow to provide accurate readings. Incorrect placement can lead to poor performance and unreliable data.

Consider these factors when mounting your transducer:

• For outboard motors, mount on the transom
• For inboard motors, consider a through-hull mounting
• Ensure the transducer face is fully submerged
• Avoid areas with turbulence or air bubbles
• Keep the transducer away from other underwater fittings

Taking the time to properly install your transducer will pay dividends in terms of sonar performance and reliability. If you’re unsure about installation, consider consulting a professional to ensure optimal placement.

Troubleshooting Common Transducer Issues

What should you do if you’re experiencing poor sonar performance? First, check for any physical obstructions or damage to the transducer. Ensure it’s clean and free from marine growth. If problems persist, you may need to adjust the transducer angle slightly or experiment with different mounting locations to find the sweet spot for your specific boat.

Maintaining Your Hook Reveal 7x TripleShot for Longevity

Like any sophisticated electronic device, the Hook Reveal 7x TripleShot requires regular maintenance to ensure optimal performance and longevity. A well-maintained unit will provide reliable service for many fishing seasons to come.

Key maintenance tasks include:

• Regularly cleaning the display screen and transducer face
• Protecting the unit from extreme temperatures and direct sunlight when not in use
• Checking and cleaning electrical connections to prevent corrosion
• Updating the unit’s software when new versions are released
• Inspecting mounting hardware for signs of wear or loosening

By incorporating these maintenance tasks into your regular fishing routine, you can ensure that your Hook Reveal 7x TripleShot remains in top condition, ready to help you locate fish on every outing.

Protecting Your Investment

How can you safeguard your fishfinder against accidental damage? Consider using the included protective cover when the unit is not in use. This simple step can prevent scratches and damage to the display screen. For added protection, you might invest in a padded case for transportation. Remember to remove the unit from your boat if you’re storing it for extended periods, especially in regions with extreme weather conditions.

Introduction to the Lowrance Hook Reveal 7x TripleShot Fishfinder

Finding fish has never been easier thanks to advanced sonar technologies like the Lowrance Hook Reveal 7x TripleShot. This versatile fishfinder packs a punch with its 7-inch color display and TripleShot transducer that provides incredible views of what’s happening below your boat. Let’s unlock the full potential of this powerful tool with some pro tips and tricks.

1. Get to Know the TripleShot Transducer

The star of the show is the TripleShot transducer that sets the Hook Reveal 7x apart. It combines traditional sonar, DownScan imaging, and SideScan imaging into one unit. Having all three modes in one transducer eliminates the need to buy extra components and simplifies installation. The sonar gives you a detailed look directly below the transducer while DownScan provides a picture of what’s beneath your boat on either side. SideScan covers a wider swath on both sides, helping you find fish holding tight to structure.

2. Master Interpreting the Sonar Readings

Learning to “read” a sonar display takes some practice but will help you locate more fish. Arches represent fish while thick lines show structure on the bottom. Adjust the sensitivity if the display seems too cluttered. Check the water temperature so you know what species to target. Over time, you’ll get better at distinguishing baitfish from gamefish based on the size and shape of sonar returns.

3. Use DownScan and SideScan to Understand Bottom Contour

The DownScan and SideScan imaging modes give you an almost photographic view of the bottom. You’ll see every rock, ridge, depression, and other detail. Use this intel to find promising spots to fish. For example, gamefish often hold tight to ridges and dropoffs. You can also learn the contour to avoid running aground. The imaging modes make the Hook Reveal 7x almost like having a second set of eyes under the water.

4. Optimize the Display for Your Conditions

Get the most out of the color display by fine-tuning it for your specific fishing conditions. The adjustable backlight helps with viewing on sunny or low-light days. Switch between day and night modes or create custom color palettes. Adjust the contrast for the ultimate balance between detail and clarity. The display accommodates split-screen views so you can see multiple modes simultaneously.

5. Take Advantage of Advanced Options

Experienced anglers will appreciate the Hook Reveal’s advanced settings for tweaking sonar performance. Adjust the depth range, noise rejection filter, and frequency for ideal results. Create custom presets to quickly switch between configurations for different situations. Enable FishReveal to highlight targets that meet certain parameters for easier identification. The possibilities are nearly endless for customization.

6. Expand Capabilities with Mapping and GPS

The Hook Reveal 7x really spreads its wings when you pair it with enhanced maps and external GPS units. Detailed LakeMaster and Navionics chips add navigational aids like depth contours, structure locations, and marinas. For even better GPS and tracking, connect your unit to an external antenna. Now you’ve got a fully-loaded graph to take your fishing game to the next level.

7. Get the Transducer Placement Right

A fishfinder is only as good as its transducer installation. The TripleShot transducer requires solid contact with the water for optimal performance. Mount it on the transom if you have an outboard motor or the hull if you have an inboard. Make sure the water flows smoothly under the transducer without bubbles or turbulence. Proper placement gives you the clearest picture of what’s happening underwater.

8. Maintain Your Equipment

Like any electronic device, the Hook Reveal 7x requires some periodic maintenance and care. Use the included cover to prevent the display from getting scratched up. Check and clean the transducer face prior to each trip. Update the software when new versions are released. If you notice any corrosion on terminals, clean them promptly. Taking good care of your equipment ensures it will deliver top performance season after season.

9. Tag Waypoints at Productive Spots

When you locates a promising fishing hotspot, make sure to tag it with a waypoint so you can return. The Hook Reveal 7x lets you tag locations right on the display. Next time you’re on the water, pull up your waypoints overlay to guide you back to proven fixtures and structure. Waypoints are invaluable for consistently putting you on top of the fish.

10. Make the Most of 2D Sonar Views

While DownScan and SideScan imaging provide photographic-quality views, the 2D sonar shouldn’t be overlooked. The traditional sonar gives you vital info about what’s happening right below the boat. Use it to monitor your lure as you work it back to the boat. 2D sonar also alerts you to fish entering the cone beneath the transducer for immediate action. Toggle between the different views to utilize each mode’s unique strengths.

11. Retrace Your Path with TrackBack

Stopaimlessly crisscrossing the water with the Hook Reveal’s handy TrackBack feature. It lets you scroll back through your recent track and retrace it exactly. Use TrackBack when you don’t tag a waypoint but need to navigate back to a spot. You can even pause, split, or skip through your track to pinpoint key moments. Never lose productive ground again.

12. Update the Software Over WiFi

Keep your Hook Reveal running its best by updating to the latest software when Lowrance releases it. The built-in wireless connectivity makes updates a breeze. Just connect to WiFi and let the updates download directly to the unit. Software improvements add new features, improved performance, and enhanced compatibility. Make a habit of regular updates.

13. Address Common Fishfinder Problems

If you notice issues like a blank screen or poor sonar readings, there are some basic troubleshooting steps to try. First, check your transducer connection and make sure it’s clean and dry. Try adjusting the depth range and noise filters. If problems persist, perform a master reset and Factory Defaults reset. And be sure to check for software updates. A bit of basic maintenance usually gets things humming again.

14. Pick Some Choice Accessories

Round out your Hook Reveal setup with some select accessories and add-ons. The included tilt/swivel quick-disconnect bracket offers versatility for fine-tuning the viewing angle. For expanded networking capabilities, add a NMEA 2000 starter kit. Protect the display from the elements with a fitted sun cover. And for fully autonomous navigaton, upgrade to an autopilot system.

15. Consider Upgrading to the Hook Reveal 9 or 12

If you find yourself craving an even larger display, check out the Hook Reveal 9 and 12 models. They offer 9-inch and 12-inch screens respectively while retaining all the core features of the 7x. The added screen real estate provides even more room for multiple-mode split views. Both options are seamless upgrades if you ever want more workspace.

With its versatile TripleShot transducer, customizable display, and wealth of features, the Hook Reveal 7x opens up a world of underwater insight. Follow these tips and techniques to start navigating waters like a pro, finding fish with ease, and getting the most from your advanced sonar. Unlock the full potential of your fishfinder and watch your catch counts soar.

What Makes the TripleShot Transducer Unique?

The Lowrance Hook Reveal 7x TripleShot fishfinder stands out from the crowd thanks to its one-of-a-kind transducer. This triple threat sensor provides anglers with a whole new perspective on the underwater world. Let’s take a closer look at what makes the TripleShot so special.

All-in-One Design

Unlike traditional fishfinders that require multiple transducers for various modes, the TripleShot combines 2D sonar, DownScan, and SideScan into a single housing. This three-pronged approach eliminates the need for multiple transducers mounted in different locations. The all-in-one transducer makes for a much simpler and cleaner installation.

No Tradeoffs in Performance

Even though the TripleShot packs three modes into one transducer, it doesn’t sacrifice performance in any single mode. You get the same crisp, detailed 2D sonar, DownScan, and SideScan views as you would from three separate transducers. The triple beams work in harmony to deliver uncompromising results across the board.

Complete Coverage

With three specialized views working as one, the TripleShot provides complete coverage beneath and around your boat. The 2D sonar monitors the area directly below the transducer. The DownScan beams reach out to the sides, imaging what’s under the boat. And SideScan covers a wide swath on either side up to 600 feet. No fish-holding spot goes unchecked.

Eliminates Cross-Talk

Because the TripleShot bundles all three beams into one housing, it eliminates interference between the signals. With separate transducers, cross-talk can muddy your displays and degrade the view quality. The TripleShot’s tight integration provides crystal clear views free from cross-talk.

Easy Mounting

Getting the transducer mounted properly is a breeze with the TripleShot. There’s just one transducer to mount instead of three, so installation is quicker and easier. The mounting process is also more flexible since you don’t have to worry about spacing multiple transducers optimally.

Unmatched Versatility

The TripleShot gives you incredible versatility for adapting to changing conditions. You can quickly shift between different modes and views with a single transducer. Compare SideScan, DownScan, and 2D sonar simultaneously to get a comprehensive understanding of your surroundings.

Reduced Clutter

Fewer transducers also means less gear cluttering up your boat. The TripleShot’s streamlined profile considerably cleans up installation compared to multiple transducers. You avoid transducer wires and mounting hardware tangled all over your boat.

Built-In Depth and Water Temp Sensor

In addition to its triple-beam sonar, the transducer has a temperature sensor right in the housing. This integrated sensor reports real-time water temperature readings on the display. A depth sensor is also built-in for understanding bottom contour and fish location.

Future Upgradeability

One triple-mode transducer means you’re set for the long haul. If you add a bigger fishfinder down the road, you won’t need to upgrade transducers. And as Lowrance releases advanced new sonar technologies, the TripleShot will be ready through software updates transmitted right over WiFi.

Easier Transom Mounting

With a single compact transducer, the TripleShot can be transom mounted even on smaller boats. Its consolidated design works on tight transoms that don’t have room for multiple transducers. The versatile placement options let you dial in the optimal installation.

Single-Cable Connection

Wiring is a snap with just one transducer cable to run to your fishfinder. Multiple transducer configurations require splicing and routing several cables. The TripleShot’s single connection cable keeps everything tidy and simple.

Uniform Bonding

Because the TripleShot combines three beams into one solid transducer, it eliminates inconsistencies between separate transducers. You never have to worry about variations in bonding angles or positions that can throw off results. Uniformity equals uniform performance.

Protective Metal Housing

The transducer’s tough metal housing shields the sensitive electronics from real-world punishment. The durable construction protects against collision damage, drops, and impact forces. You can confidently mount it exposed on the transom without fear of breakdown.

With its unique consolidated triple-beam design, the Lowrance Hook Reveal 7x TripleShot transducer revolutionizes fishfinder performance. Never miss fish-holding structure in any direction again thanks to the versatile sonar coverage. And installation is a total breeze with just one transducer to mount. This integrated powerhouse completely redefines modern fishfinding.

How to Interpret Sonar Readings and Find Fish

Having the right fishfinder can make all the difference when trying to locate fish. But even the most advanced sonar isn’t helpful if you don’t know how to read and interpret the information it provides. The Lowrance Hook Reveal 7x TripleShot combines excellent sonar capabilities with an intuitive and easy-to-use interface. Follow these tips to get the most out of your Hook Reveal 7x TripleShot and find more fish.

Understand How Sonar Works

Sonar utilizes sound waves to detect objects and structure under the water. The transducer on your Hook Reveal 7x TripleShot sends a cone-shaped pulse of sound waves into the water. When the sound waves hit an object like the bottom, fish, or structure, they bounce back. The transducer picks up these return sound waves and the fishfinder processes and displays them on screen.

Knowing the basics of how sonar works helps you better interpret the information on screen. The strength and time it takes for sound waves to return indicate the size and location of detected objects.

Learn to Read Sonar Imagery

Modern fishfinders provide a wealth of sonar information. The Hook Reveal 7x TripleShot combines the ultra-clear imaging of CHIRP sonar with DownScan and SideScan views. Here’s a quick guide to interpreting basic sonar displays:

• Arches indicate fish. Wider arches often mean larger fish. Tall, thin arches are typically smaller fish.
• Thick bands of color differentiate the bottom. Soft bottom like mud or sand returns lighter colors. Hard bottoms like rock or gravel show darker.
• Vertical lines are structure like drop-offs, humps, or weed beds where fish congregate.
• Bait balls appear as cloud-like clusters, signaling feeding activity.
• The distance between objects on screen shows the actual distances beneath your boat.

Understand Fishfinder Frequencies

Fishfinders use different sonar frequencies depending on the depth and level of detail needed. The TripleShot transducer on the Hook Reveal 7x uses three frequencies:

• 50 kHz has the longest range, up to 480 feet deep.
• 83 kHz offers a better picture quality than 50 kHz and scans 240 feet deep.
• 200 kHz has the highest detail but shortest range of about 75 feet.

Understanding the strengths of each frequency helps you interpret the sonar views. For example, 83 kHz provides better target separation than 50 kHz and is great for finding bottom structure. 200 kHz gives the best picture resolution to differentiate baitfish from gamefish.

Master Your Fishfinder’s Controls

The Hook Reveal 7x TripleShot is packed with customizable settings and controls. Take time to learn how to fine-tune these to get the most accurate and high-quality scans:

• Adjust sensitivity to avoid excessive clutter from plankton or sediment.
• Filter out noise and surface disturbance.
• Set appropriate range scales for depth and zoom in on targets.
• Tweak sonar frequencies for the detail you need.
• Customize display windows to show different combinations of sonar views.

Don’t be afraid to experiment with your fishfinder’s controls. The right settings make interpreting sonar data much easier.

Use Waypoints Strategically

Marking waypoints on your Hook Reveal 7x TripleShot is crucial for recording productive fishing spots. Strategic waypoint placement includes:

• Drop-offs, humps, ledges, brush piles, and other key bottom structure.
• Weed lines or other vegetation changes.
• Places you’ve caught fish.
• Anywhere baitfish or gamefish appear on screen.

Consistently marking high-probability areas makes it easier to return and fish them thoroughly. Over time, waypoints create a map detailing the most promising spots on the water.

Look for Telltale Signs of Fish

Learn to recognize clues on your TripleShot sonar that suggest fish presence. Subtle signs like small arches near structure or slightly thicker bottom lines can mean fish are using the area. Watch for these giveaways:

• Arches marking isolated targets on an otherwise clean bottom.
• Increased fish activity during certain weather conditions or times.
• Areas of noticeably denser bottom hardness or different color.
• Occasional small arches rising off a relatively flat bottom.
• Baitfish hanging close to structures like points, drop-offs, and ledges.

Seeing even very subtle sonar signs of fish can help you zero in on the most productive spots.

Put Your TripleShot to Work

Get the most out of your Hook Reveal 7x TripleShot by taking full advantage of its versatile triple sonar capabilities:

• Use the down-looking CHIRP sonar to search for fish-holding structure.
• Switch to SideScan to cover more area and spot fish along edges.
• Turn on FishReveal to see fish targets more clearly on DownScan.
• View multiple sonar modes simultaneously to compare views.
• Use Split Zoom to focus on targets at different ranges in each window.

Mixed sonar views give the clearest overall picture of what’s happening beneath your boat. Analyzing and correlating the data allows making better choices about where to fish.

Keep a Fishing Log

A fishing log is vital for improving your ability to use sonar effectively. Recording details like conditions, locations, techniques, and catches helps determine what works. Over time, you’ll learn to interpret sonar better by correlating readings with actual results.

Important things to note in your log include:

• Date, time, location, and weather.
• Sonar readings and screen captures at each location.
• Depths fish were found and caught.
• Fishing lures and presentations used.
• Any patterns that emerge.

Cumulative experience translates into more skill at interpreting sonar. Your log provides the knowledge needed to make sense of what you’re seeing on screen.

Practice Makes Perfect

Like any skill, learning to effectively use your Hook Reveal 7x TripleShot takes time and practice. Be patient and keep applying these tips. Soon you’ll become adept at deciphering sonar imagery to find more fish. Mastering your fishfinder’s capabilities requires commitment, but the reward is many more successful fishing trips.

Using DownScan and SideScan Imaging to Map Bottom Contour

Advanced imaging sonars like DownScan and SideScan take your ability to understand bottom contour and structure to the next level. The Hook Reveal 7x TripleShot combines both technologies in one versatile fishfinder. Learning how to use DownScan and SideScan together provides amazingly detailed images of the terrain and objects below your boat.

DownScan Shows You More Detail

DownScan sonar uses a narrow, focused beam to provide a remarkably clear picture directly under your boat. It maps the bottom in crisp detail you just can’t get from traditional conical beam sonar. The ultra-high 800 kHz frequency renders minute details like small rocks, branches, and even individual baitfish. DownScan quickly builds a comprehensive image of the bottom makeup, structure, and cover that attract fish.

Benefits of DownScan for mapping bottom contour include:

• Crisp imaging of bottom hardness changes, drop-offs, humps, channels, and other key contour features.
• Enhanced target separation to distinguish weeds, wood, and smaller objects.
• Sees structure that conventional sonar can miss or show indistinctly.
• Photorealistic images that clearly reveal bottom content and changes.

SideScan Covers More Area

SideScan sonar uses fan-shaped beams expanding outward from each side of your boat to scan wide swaths of water. It provides complete coverage of bottom terrain out to impressive ranges. SideScan literally enables “seeing” port and starboard as you move forward, mapping the entire area.

Key strengths SideScan brings to contour mapping include:

• Scans up to 300 feet or more on each side, covering vast areas.
• Displays the full context of structures, drop-offs, channels, and cover.
• Reveals changes in bottom composition port and starboard.
• Great for finding fish highways along ledges, humps, and weed lines.

Correlate DownScan and SideScan Views

The Hook Reveal 7x TripleShot lets you view DownScan and SideScan images simultaneously. Correlating the two provides complete bottom mapping:

• DownScan shows hyper-detailed structure directly below.
• SideScan gives the big picture context around your boat.
• Together they create a continuous map of the area.
• Overlapping coverage confirms contours and targets.

It’s like combining an aerial view with zoom-in close-ups. The tandem imaging leaves no blind spots when surveying bottom makeup and terrain.

Focus SideScan Where It Counts

Don’t leave SideScan running continuously. This floods the display with more information than you need. Instead, turn it on and off strategically:

• Approaching key structures visible on DownScan.
• During turns to maximize coverage.
• While traversing promising stretches or edges.
• When passing over major contours or objects previously marked.

This focused SideScan usage concentrates coverage on important bottom features as they are approached and contoured.

Use Waypoints to Mark Structures

Waypoints are invaluable for recording specific structures and contours as SideScan and DownScan reveal them. Strategically placing waypoints identifies key spots to concentrate your fishing efforts.

Critical mapping waypoints include:

• Drop-offs, humps, depressions, flats, and other contour changes.
• Edges of structure where fish congregate.
• Isolated objects like stumps, boulders, or brush piles.
• Changes in bottom hardness or composition.

Waypoints pinpoint the highest percentage areas so you can rotate through the most promising structures and contours.

Use Chart Overlay for Orientation

It’s easy to get disoriented when panning SideScan back and forth. The Hook Reveal 7x TripleShot’s optional chart overlay feature solves this issue. With the contours of your lake or coastal waters displayed behind sonar imagery, you can instantly orient yourself.

Benefits of the chart overlay include:

• Real-time confirmation of your location relative to charted structure and depth changes.
• Makes following key contours and breaklines easier.
• Lets you match SideScan images to marked topography.
• Confirms suspicious objects are not charted structures.

The at-a-glance orientation keeps you efficient and focused while surveying wide swaths of bottom.

Fine-Tune Your Fishfinder Settings

Like all advanced electronics, getting the most out of SideScan and DownScan requires fine-tuning your Hook Reveal 7x TripleShot. Keep these tips in mind:

• Adjust contrast for maximum detail separation on the bottom.
• Set appropriate range scales for coverage vs. image quality.
• Filter noise and surface clutter for clearer scans.
• Tweak beam width and side-to-side balancing on SideScan.

Properly set controls allow customizing scans for the conditions and mapping needs at hand.

Review and Compare Sonar History

The Hook Reveal 7x TripleShot allows scrolling back through the sonar history to review scans and marked waypoints. Comparing recent images with past readings at the same locations reveals any changes over time. Things to look for include:

• New structures or objects.
• Shifts in bottom contours or hardness.
• Differences in fish presence and location.
• Seasonal weed growth or die-offs.

Repeated comparisons help build a mental catalog of bottom characteristics in different conditions throughout the year.

Put in the Time to Map it Right

Becoming an expert at using DownScan and SideScan to map bottom contour and content takes commitment. But the payoff is enjoying a true 3D view of the underwater world below your boat. Take advantage of all the Hook Reveal 7x TripleShot’s versatile sonar capabilities. The knowledge gained will lead you right to the fish!

Customizing Display Options for Maximum Visibility

One of the great benefits of advanced fishfinders like the Lowrance Hook Reveal 7x TripleShot is the ability to customize display settings. Optimizing the menus, views, and options for your specific needs and conditions is key to getting maximum visibility.

Understand Display Capabilities

The Hook Reveal 7x TripleShot has an impressive 7-inch color display with LED backlighting. It can show multiple windows at once, providing different sonar views simultaneously. Key display capabilities include:

• Up to four resizable windows shown together.
• Independent zoom and settings per window.
• Preloaded display combinations for common sonar options.
• User-customizable window arrangements.
• Crisp 480H x 480V pixel resolution.

Take time to familiarize yourself with all the display flexibility before customizing for maximum visibility.

Reduce Clutter for Clearer Views

Dealing with sonar noise and clutter is vital for clean scans. Adjust menu settings to filter interference based on conditions:

• Use surface clarity to remove surface noise.
• Turn on fish reveal to isolate targets.
• Adjust sensitivity to reduce unnecessary data.
• Set noise filters to minimize engine and electrical interference.

Reducing clutter highlights fish and structure targets for improved visibility and easier interpretation.

Zoom Windows to Focus on Key Details

The Hook Reveal 7x TripleShot’s zoom capabilities let you focus each window on the desired level of detail. Strategic zooming tips include:

• Wide views to see overall context of structures and bottom.
• Zoomed views to inspect key targets up close.
• Different zoom levels on multiple windows.
• Zoom presets to toggle between useful ranges quickly.

Targeted zooming provides both the big picture and focused detail for maximum visibility.

Arrange Windows for Correlated Views

Experiment with display layouts to compare sonar views for the fullest picture. Helpful arrangements include:

• Overlay DownScan and SideScan for unified bottom and structure mapping.
• Split-frequency views to compare target separation on 50, 83 and 200 kHz.
• A zoomed window beside a wide view to correlate targets and context.
• Sonar history replayed simultaneously with live scanning.

Correlated views confirm fish and structure for improved confidence in your interpretation.

Use Preset Display Options

Take advantage of the Hook Reveal 7x TripleShot’s preset display combinations to quickly select proven effective views:

• QuadView shows CHIRP, DownScan, SideScan and Chart views together.
• Split TripleShot has CHIRP, DownScan and SideScan on one screen.
• SonarChart Live overlays scanned contours on the map.
• Circular Flasher mimics traditional flasher displays.

Presets provide great starting points for common sonar applications before customizing further.

Adjust Backlight and Color Palettes

Dialing in the right backlighting and color palette is crucial for maximum display visibility. Consider these adjustments:

• Brighter backlight for daylight, lower for night.
• Use grayscale for the clearest target separation.
• Select backgrounds to accentuate or subdue details.
• Match CHIRP and DownScan palettes for easier correlation.

Proper backlighting and smart color choices reduce eye strain and heighten subtle contrasts.

Turn Off Unneeded Views

Too much sonar information can be confusing and clutter displays. Avoid this by:

• Only using SideScan when needed for coverage.
• Disabling unneeded frequency views like 200 kHz when deep scanning.
• Hiding dashboard data that isn’t actively being used.
• Focusing on key views for the current situation.

Decluttering the display highlights the most applicable data for easier analysis.

Correlate Bottom and Structure Views

Linking SideScan coverage with DownScan’s ultra-clear structure imaging provides invaluable bottom detail. Use them in combination to:

• Confirm targets and contours.
• Differentiate key structures from surrounding bottom.
• Cross-reference suspected objects between views.
• Get both hyper-detailed and big picture context.

The powerful one-two punch reveals nuances that either view alone would miss.

Save and Reuse Custom Layouts

Once you perfect display configurations optimized for different situations, be sure to save them for easy recall later. Valuable presets to have ready include:

• Layouts for cloudy, sunny, twilight and nighttime conditions.
• Views focused on docks, bridges, flats, and channels.
• Setups for finding structure, fish or cruising unfamiliar areas.

Saved custom layouts make reconfiguring displays for changing needs quick and easy.

Keep Experimenting to Improve Visibility

Continually tweaking your Hook Reveal 7x TripleShot’s display setup as conditions dictate is key to maintaining maximum visibility. Be ready to adjust and experiment until the views are optimized for every situation. Mastering the menus will reward you with crystal clear sonar data.

Advanced Settings to Fine-Tune Performance

Serious anglers know optimizing advanced settings is key to achieving top fishfinder performance. The Lowrance Hook Reveal 7x TripleShot is packed with adjustability to fine-tune sonar output. Mastering these capabilities ensures you get the clearest scans, maximum detail, and ultimate fishing advantage.

Understand the TripleShot Frequencies

The TripleShot transducer on the Hook Reveal 7x uses three sonar frequencies to target different depths and levels of detail:

• 50 kHz has the widest cone and longest range to 480 feet, great for deep water.
• 83 kHz balances range and target separation out to 240 feet.
• 200 kHz gives the highest resolution to 100 feet with excellent structure definition.

Optimizing each frequency’s performance is key to quality scans at different depths.

Adjust Ping Speed for Crisper Targets

The ping speed controls how rapidly sonar pulses are transmitted. Adjust this based on your needs:

• Faster ping rates make fish targets and structure cleaner.
• Slower pings extend depth range since sound has more time to return.
• Balance ping speed, range and target clarity as needed.

Properly tuning ping speed literally sharpens your view for important details.

Set Appropriate Range Scales

The range setting controls the depth range displayed on screen. Set strategically based on conditions:

• Deeper for maximum coverage when fishing unknown areas.
• Shallower when concentrating on specific structures or contours.
• Narrow range to isolate targets, widen to regain perspective.

Picking the right range for your immediate purpose provides optimal image quality.

Use Surface Clutter for Cleaner Scans

Excess noise from boat wakes, bubbles, and wave action clutters scans. The surface clarity filter removes it for improved target visibility:

• Turn up the filter when noise is excessive.
• Reduce it for very calm conditions to get shallow data.
• Find the ideal level for clean scans while retaining needed detail.

Controlling surface clutter reveals the truth below while eliminating meaningless noise.

Target Fish with FishRevealTM

The FishReveal feature uses advanced signal processing to isolate fish from background structure. Turn it on to:

• Instantly spot lurking gamefish.
• Distinguish baitfish from predators.
• Reduce noise from thermoclines and cover.
• See fish that would otherwise blend in.

FishReveal transforms sonar into a deadly fish-spotting tool.

Discriminate with Fish ID+TM

Fish ID+ uses smart algorithms to analyze sonar returns and determine fish targets. It provides key insights to give you an edge:

• Indicates relative fish size on screen.
• Tracks movement to follow schools or fleeing fish.
• Helps confirm targets as actual fish.
• Shows fish proximity to structure, bottom, and your lure.

Letting Fish ID+ evaluate targets frees you to make smarter fishing decisions.

Dial in Noise Filtering

Interference mars sonar performance. The Hook Reveal 7x TripleShot has specific filters to combat noise sources:

• Engine noise rejects prop and engine electrical interference.
• Interference reduction minimizes competing sonar and electrical noise.
• Adjust filters until the clearest, quietest picture emerges.

Targeted noise rejection restores scan quality for improved target detection.

Balance and Tune SideScan Beams

Careful adjustment of SideScan’s left and right beams optimizes coverage and image quality:

• Balance beam intensity for equal sensitivity port and starboard.
• Widen beams for maximum coverage, narrow for higher resolution.
• Pan beams to extend scans farther port or starboard as needed.

Proper SideScan beam tuning sweeps a clear, unbiased view of lakebed and structure.

Select Bottom Tracking Modes

Bottom tracking configures the sonar for either smooth or rugged bottom terrain:

• Slope flattens bottom to help detect fish hugging contours.
• StructureTrack adds texture for ultra-clear structure views.
• Auto mode automatically adapts tracking to conditions.

Choose modes to enhance either bottom or target visibility as fishing situations dictate.

Customize Color Palettes

Select color palettes optimized for different fishing challenges:

• Low light mode for night or extreme depths.
• High contrast views to spot subtle structure.
• Green palettes when fishing weed beds or shallows.
• Blue tones for offshore and deep water scanning.

Smart palette choices heighten detail and make displays easier on your eyes.

Learn From the Pros

The Hook Reveal 7x TripleShot comes preloaded with custom settings from Lowrance fishing pros. Learn how the experts configure their units, then apply their techniques yourself:

• Mimic proven settings for common situations.
• Note adjustments they make and try them yourself.
• Understand why custom tunings enhance scans and fishability.

Leveraging pro knowledge through preset options jumpstarts your learning curve.

Practice Makes Perfect

Ultimately, experience is the best teacher for dialing in advanced fishfinder settings. Be patient, keep experimenting, and keep notes on what works best. Soon you’ll have your Hook Reveal 7x TripleShot performing its absolute best!

Pairing With Mapping Chips and External GPS Units

Connecting advanced mapping chips and external GPS antennas greatly expands your Lowrance Hook Reveal 7x TripleShot’s capabilities. Unlocking integrated chart plotting, high-precision GPS tracking, and StructureScan 3D mapping transforms it into the ultimate fish-finding system.

Add Navigation Mapping

Incorporating C-MAP mapping chips turns your Hook Reveal 7x TripleShot into a full-featured chartplotter. Available Lake Insight HD or Coastal Charts transform the fishfinder with valuable navigation enhancements:

• View detailed bathymetric lake or coastal maps live on screen.
• Overlay DownScan, SideScan and sonar charts on the maps.
• Plan routes, set waypoints and navigate from point to point.
• Get detailed chart views of depths, structure and navigational aids.

Built-in navigation takes the guesswork out of navigating unfamiliar fisheries.

Unlock StructureScan 3D

StructureScan 3D imaging lets you see structure and fish like never before. It combines SideScan’s wide coverage with DownScan’s ultra-clear imaging into a stunning 3D view beneath your boat. To activate it you need:

• A StructureScan 3D capable transducer like the TripleShot.
• A compatible mapping chip like a Lake Insight HD.

With StructureScan 3D, you literally see structure and fish in three dimensions for amazing real-world views.

Pinpoint with External GPS Antennas

External GPS antenna mounting options greatly improve positioning accuracy. Options like the Lowrance GPS Source use superior receivers to lock in and track location precisely:

• Instantly snaps to your position on power up.
• Maintains solid satellite lock when antenna blocked.
• Updates location, course, and speed much faster.
• Critical for using mapping chips to their full potential.

Precision GPS tracking ensures you know your exact position at all times.

Gather Data for Custom 3D Maps

Your Hook Reveal 7x TripleShot has the ability to record sonar logs with detailed bottom contour, hardness and structure data. You can use this log data to generate personalized 3D maps:

• Systematically scan the area using Crisp StructureScan HD.
• SonarChart Live or Insight Genesis processing software converts scans into 3D maps.
• Upload the resulting map to your unit’s micro SD card.
• View amazingly detailed personal 3D maps of your favorite fisheries.

Now you have the home water advantage wherever you fish.

Share Waypoints and Routes

The Hook Reveal 7x TripleShot makes transferring waypoints, routes and tracks easy. Share fishing hotspots and knowledge with other Lowrance users:

• Export data to included SD card and share.
• Send wirelessly over SignalSync network.
• Upload to Insight Genesis web app for anytime access.
• Import data from others to expand your fishing knowledge.

Access to shared waypoints multiples your scouting efforts.

Add Satellite Weather Overlay

SiriusXM weather compatibility brings vital satellite weather data to your fishfinder display. Add the WM-4 satellite weather receiver to see:

• Real-time radar overlay showing storms and precipitation.
• Weather buoys with wind, waves, temperature and barometric pressure.
• Short and long-term forecasts while on the water.

Don’t get caught off guard again. Satellite weather enhances situational awareness.

Network Sonar and Radios

Lowrance’s SignalSync wireless networking links multiple units for enhanced awareness. Simply add components like:

• HDS Live sonar units to display active scans.
• VHF radios for unified controls and monitoring.
• Stereo head units for system-wide media control.

Expanding your network multiplies your advantage on the water.

Get NMEA Data from Onboard Electronics

The Hook Reveal 7x TripleShot interfaces with onboard electronics via NMEA 2000 and NMEA 0183. Connect to data like:

• Depth sounders for redundant depth readings.
• Engine information including RPM, trim, temperature, and fuel flow.
• Rudder position and speed data.
• Automated Identification System (AIS) for collision avoidance.

Full electronics integration completes the picture and functionality.

Link to Powerful Smartphone Apps

Connecting the Hook Reveal 7x TripleShot fishfinder to the Lowrance smartphone app unlocks awesome capabilities:

• Remotely view sonar scans in real-time.
• Adjust settings and scan frequencies.
• Mark waypoints and save tracks.
• Update software and charts.

Extend your fishfinding capabilities right to your smartphone.

Expand Your Fishfinding Horizons

Pairing your Hook Reveal 7x TripleShot fishfinder with this huge range of add-ons exponentially expands its abilities. Take your fishfinding capabilities to the ultimate level!

Mounting the Transducer for Best Results

Getting the most out of your Lowrance Hook Reveal 7x TripleShot fishfinder starts with proper installation and optimizing the placement of the transducer. The transducer is key – it’s the component that sends and receives the sonar signals that allow you to see structure, baitfish and gamefish below your boat. Follow these 15 tips to ensure you get the clearest picture and maximize your ability to find fish.

1. Select the optimal location

When mounting your TripleShot transducer, choose a location that is as close to the centerline of the boat as possible. This will provide the clearest sonar readings. The transducer should also be mounted forward of the engine(s) and propeller(s) to avoid turbulence and aeration that can degrade the sonar signal.

2. Make sure the water flows smoothly

The area in front of the transducer must be flush and smooth to the hull with no obstructions that can create air bubbles and cavitation. This will interfere with the sonar beam. Use marine sealant to fill any gaps or irregularities.

3. Get it as low as possible

The closer to the keel you can mount the transducer, the better. Having it deep in the water improves the cone angle and allows you to see deeper below the boat. But make sure it’s mounted at least 3/4″ above the bottom of the hull so it doesn’t hit debris or the bottom.

4. No deadrise zone

Avoid mounting the transducer in an area with deadrise – where the bottom angles up towards the transom. Shooting through deadrise distorts the sonar beam. The bottom should be parallel with the transducer face.

5. Consider a jack plate

Using a jack plate gets your transducer mounted lower on the transom for better cone angles. Just make sure water flows smoothly over the plate’s underside and that your transducer clears the lower unit and prop.

6. Transom mounting

For outboard boats, transom mounting typically works best. In-hull mounting is an option but is prone to more interference. Make sure the transducer is parallel with the waterline when mounted.

7. In-hull mounting factors

If in-hull mounting, choose a spot with single layer hull laminate, no ribs or stringers, and minimal deadrise. Apply plenty of sealant to seal and create a smooth finish.

8. No obstructions

There should be no obstructions blocking the transducer’s view aft of the boat. Things like strakes, stern platforms and bracketry can create turbulence and interfere with clear sonar readings.

9. Proper angle

Mount the transducer so it is aimed straight down. It should be parallel with the surface of the water whether the boat is stationary or on plane. Angling it even slightly can skew sonar beams.

10. No bubbles or aeration

Make sure no air bubbles or aeration are flowing over the face of the transducer when the boat is underway. This causes interference. Cable ties, fairing blocks and sealant can help divert bubbles away.

11. Seal thoroughly

Completely seal the transducer and eliminate any air pockets or gaps around the mount. Use plenty of marine-grade sealant and make sure you achieve 100% seal all the way around.

12. No vibration

Solid, rigid mounting with adequate support is key. Any vibration or flexing due to thin fiberglass or inadequate backing blocks will compromise the transducer’s effectiveness.

13. Cable routing

Route the transducer cable as far from other power cables as possible. Electrical interference can impact your unit’s performance. Use cable ties and wire loom as needed.

14. Update software

Be sure to update your Hook Reveal to the latest software version. Software upgrades often improve sonar performance. Check online or use the Lowrance ActiveTarget app.

15. Fine tune settings

Become familiar with your TripleShot’s menu options so you can fine tune settings like fish ID sensitivity, surface clarity, and scroll speed for your particular waters and fishing style. Adjusting these can really maximize your fish-finding capabilities.

Following these transducer mounting and installation best practices will unlock the full potential of your Hook Reveal 7x TripleShot. Taking the time to optimize the location and eliminate interference will take your sonar readings to the next level. Along with learning your fishfinder’s menu options, you’ll be on your way to finding more fish.

Maintaining Your Transducer and Unit for Peak Performance

Your fishfinder is only as good as the sum of its parts. To get the most out of your Lowrance Hook Reveal 7x TripleShot, you need to keep both the transducer and the unit in top working order. With some simple regular maintenance and optimization tricks, you can extend the life of your fishfinder and ensure it’s performing at its peak sensitivity.

Transducer Care and Maintenance

The transducer is the heart of your fishfinder system, converting electrical energy into sound waves and back again. Like any sensitive electronic instrument, it requires proper handling and care for optimal longevity and performance. Here are some best practices for transducer maintenance:

• Check the transducer cable and connections periodically for cracks or corrosion, and make sure the cable is securely fastened to the boat with cable clamps.
• Use marine-grade silicone sealant on the transducer cable exit hole and all screw holes to prevent water intrusion.
• When removing the boat from water, use a damp cloth to wipe the transducer face clean of debris, salt, and grime.
• Avoid banging or scraping the transducer face on hard objects, which can damage the piezoelectric crystals.
• Check the transducer for marine growth like barnacles and algae, and gently remove with a plastic scraper.
• Use a rubber conditioner periodically on the transducer body to prevent cracking.

Fishfinder Unit Optimization

The fishfinder unit also requires some periodic maintenance and adjustment for peak efficiency. Here are some tips to optimize your Hook Reveal’s performance:

• Update the software and charts regularly via internet connection to ensure you have the latest sonar processing algorithms.
• Dust or clean the screen periodically with a microfiber cloth to maintain visibility.
• Check the rear connectivity ports for corrosion and spray with electrical contact cleaner if needed.
• Adjust the screen brightness, contrast, and background lighting for maximum visibility in your conditions.
• Play with gain, filter, noise rejection and TVG settings to fine-tune the sonar image for your particular waters.
• Set up the alarm notifications you find most useful like fish, depth, and water temperature.
• Organize your waypoints, routes, trails and groups so they are easy to access and manage.

15 Pro Tips for Optimizing Your Hook Reveal 7x TripleShot

Beyond basic maintenance, there are some pro tips and tricks that can really help you get the most out of your Hook Reveal fishfinder:

1. Use the “Auto” sonar settings as your starting point then tweak from there.
2. Bump up the ping speed to max for the fastest sonar returns.
3. Use the TripleShot transducer’s multiple sonar beams to validate targets and cover a wider swath.
4. Zoom into the sonar image to separate fish from structure.
5. Increase gain for maximum sensitivity, then fine tune with less gain to reduce clutter.
6. Adjust TVG curve based on water depth. Use higher curves in shallow water.
7. Use manual mode and play with filters to isolate targets and reduce noise.
8. Set a noise rejection level just above the ambient noise floor to minimize clutter.
9. Activate A-Scope for easier interpretation of sonar returns.
10. Use Surface Clutter to reduce noise near the surface from waves and bubbles.
11. Customize the Split Zoom views to see zoomed and full range simultaneously.
12. Use Waypoint Declutter when navigating to hide clutter from other waypoints.
13. Plot trails to mark structure areas and retrace productive paths.
14. Add waypoints only when stationary to ensure accurate positioning.
15. Update the maps to the latest available to ensure most accurate depth data.

By taking care of your transducer, optimizing your settings, and using best practices – you can get the highest level of performance from your Hook Reveal. Mastering these tips will help you see more fish and ultimately catch more! Use the full capabilities of the TripleShot technology to validate returns and really maximize your ability to find fish. Keep this advice handy and refer back to it periodically to ensure your system is dialed in for peak efficiency season after season.

Recording Waypoints to Find Hot Spots Again

One of the most valuable features of advanced fishfinders like the Lowrance Hook Reveal 7x TripleShot is the ability to save and manage waypoints. Waypoints allow you to digitally mark a location and return to productive fishing spots time and time again. Here’s a deep dive into making the most of waypoints to consistently find the hot spots and patterns.

The Power of Waypoints

Saving waypoints at locations where you consistently mark or catch fish is the key to unlocking the power of your fishfinder. Once marked, you can easily navigate back to those high-percentage areas. Waypoints also allow you to study patterns and clusters to understand how fish move and group in your home waters over the seasons.

Unlike paper charts, digital waypoints are precise GPS marks that remain accurate year after year. No more guessing where that brush pile was located – you have an exact digital reference. Waypoints are the memory of your system, allowing you to capitalize on past experience.

Marking Pro Tips

When saving waypoints, keep these pro tips in mind:

• Only mark waypoints when stationary, or they may be inaccurately offset.
• Add a descriptive name like “Brush Pile”, not just a number.
• For bottom structure, offset the waypoint slightly deeper.
• Consider marking entry and exit points to fishing areas.
• Use waypoint clusters to define productive zones.

The Lowrance Hook Reveal makes marking and managing waypoints simple. Just a few button presses will drop a digital reference that you can leverage over and over.

Revisiting Hot Spots

Once you’ve built up a waypoint library of proven fishing spots, it’s simple to capitalize. Use these techniques to consistently return to hot spots:

• View your waypoints overlayed on the map to pick spots to visit.
• Turn on the fishing hotspot layer to see correlations.
• Use the “go to” command to easily navigate to a saved waypoint.
• Input a waypoint route to fish a pattern systematically.
• Leverage your trail history to cover productive areas.

With the Hook Reveal’s touchscreen interface, it’s very intuitive to pick hot spots from your waypoint list and navigate to them quickly.

15 Pro Tips for Maximizing Waypoints

Taking full advantage of the waypoint capabilities will help you consistently put more fish in the boat. Here are 15 tips and tricks for pro-level waypoint use:

1. Save waypoints only when stationary for accuracy.
2. Add meaningful names, not just numbers.
3. Mark structure spots slightly deeper than charted.
4. Use clusters to define high percentage zones.
5. Leverage the fishing hot spots layer for insights.
6. Delete waypoints no longer relevant to declutter.
7. Consider offset points for approaches and exits.
8. Group nearby spots into a single waypoint file.
9. Utilize waypoint routes to methodically cover areas.
10. Zoom into clusters to study patterns and spacing.
11. Review trail history overlays for recent activity.
12. Enable Waypoint Declutter when navigating.
13. Plot drift lines and currents with trailing waypoints.
14. Use the “go to” function for quick navigation.
15. Back up waypoints regularly to protect your assets.

Mastering waypoint management unlocks the real power of your Hook Reveal system. The top anglers consistently record and revisit hot spots, avoiding “looking for fish” and instead “fishing for fish.” Use these tips to build your digital database of proven areas and efficient patterns to maximize your time on the water season after season.

Understanding 2D Sonar, DownScan, and SideScan Overlays

One of the most powerful capabilities of the Lowrance Hook Reveal 7x TripleShot fishfinder is its ability to overlay 2D sonar, DownScan, and SideScan imaging simultaneously. This provides a complete view of the underwater environment in real time. Here’s an in-depth look at making the most of these overlay views.

2D Sonar View

The 2D sonar display provides a graphical representation of what is beneath your boat. It shows a slice of the water column, with depth on the vertical axis and time scrolling horizontally. The strongest sonar returns show up as arches indicating fish, while smaller returns indicate structure, bottom hardness, and other cover.

The 2D sonar view is great for seeing fish and structure directly under and around the boat. It provides real time feedback for precision fishing.

DownScan Imaging

DownScan uses a narrow, high-frequency sonar beam straight below the boat. It provides a detailed image of what is directly beneath, displayed in crisp, photograph-like detail. DownScan excels at showing small baitfish, separation between fish and structure, and even individual limbs on brush piles.

The ultra-fine detail of DownScan paired with its vertical coverage straight below makes it ideal for finesse fishing applications.

SideScan Imaging

SideScan uses two wide beams pointing outward from the sides of the boat to image a swath of the bottom. The right and left returns are combined to form an image of what is beside and beyond the boat.

SideScan provides expansive coverage, revealing fish activity, subtle drops, ditches, weed lines, and other structure adjacent to the boat that might be missed by regular sonar.

Putting It All Together

The Hook Reveal 7x TripleShot combines all three of these views together. By overlaying them, you get the complete underwater picture in real time, from below the boat out to the sides.

Sonar shows you what’s directly under the boat, DownScan adds ultra high-resolution detail of that immediate area, while SideScan expands your coverage to see how structure and fish activity connects and extends outside your immediate location.

The overlays validate readings between the different technologies, while expanding your understanding of the complete underwater environment around the boat. This enables making more informed decisions to consistently put yourself in the best position to catch fish.

15 Pro Tips for Optimizing Your Overlay Views

Here are some advanced tips to get the most out of your TripleShot imaging:

1. Use the split Zoom views to see your full coverage and an enlarged area simultaneously.
2. Zoom DownScan and SideScan independently from 2D sonar.
3. Play with sonar frequencies to balance target separation and depth penetration.
4. Use narrower DownScan beams for greater target separation.
5. Select wider SideScan views to maximize coverage area.
6. Adjust contrast and color palette settings for maximum definition.
7. Use FishReveal to highlight fish-sized targets and structure.
8. Customize the panel layouts for your specific fishing needs.
9. Compare real-time readings to built-in chart data for discrepancies.
10. Use Waypoint Declutter when navigating to reduce screen clutter.
11. Mark waypoints on structure and bait balls just outside your 2D coverage.
12. Correlate SideScan targets with 2D arches to validate readings.
13. Watch fish movement from SideScan to 2D to time perfect lure presentation.
14. Note depths and distances to saved waypoints for easy repositioning.
15. Study SideScan history to reveal trends in fish location and activity over time.

By fully utilizing the 2D, DownScan, and SideScan overlays – you can dissect the underwater environment in complete detail. This allows making informed decisions to consistently put your lures right in front of active fish. Unlock the power of your Hook Reveal’s TripleShot imaging to take your fishing to the next level!

Using the TrackBack Feature to Retrace Your Route

One incredibly useful innovation in modern fishfinder chartplotters is TrackBack. This allows recording a TrackBack log of your route as you fish, then following that exact track again in reverse. For precisely retracing productive paths, nothing beats TrackBack.

The Power of TrackBack

TrackBack eliminates the guesswork of trying to retrace your route from memory or paper notes. The system digitally logs your track as you fish in real time. Then, at the push of a button, it will guide you back along that exact track.

This ability to perfectly duplicate drifts, trolling passes, structure sweeps, and other patterns is an incredible asset for dialing in productive areas. No more guessing – follow the digital breadcrumbs!

Recording Your Track

To take advantage of TrackBack on the Lowrance Hook Reveal, start by recording a track:

• Check that track recording is enabled in the settings.
• Clear the track log if desired to start fresh.
• As you fish, the chartplotter will digitally log your path.
• The current track is displayed, along with track history.

It’s really that simple. The system will automatically record everywhere you fish, building a digital trail log.

Following TrackBack

When you want to precisely retrace your productive route, enter TrackBack mode:

• Select the track you want to replay from the history.
• Choose the “Follow TrackBack” command.
• The system will guide you back along the track.
• Make adjustments as needed to stay on route.

The key is using your motor to stay precisely on track as its replayed. This allows perfectly duplicating your past movements.

15 Pro Tips for Optimizing TrackBack

Here are some tips from the pros for maximizing this powerful capability:

1. Record tracks for all fishing trips to build history.
2. Clear the current track periodically to avoid clutter.
3. Adjust the track recording interval as needed.
4. Name productive tracks for easy identification.
5. Study the track overlay on charts to find patterns.
6. Use TrackBack for trolling to duplicate passes.
7. Follow sweep tracks to methodically cover structure.
8. Replay drift tracks to finesse private docks repeatedly.
9. Use circle tracks around points to stay on fish.
10. Trace zig zag tracks for precise structure coverage.
11. Review SideScan history of tracked areas to correlate fish.
12. Engage auto-guidance for hands free TrackBack.
13. Use waypoints to mark key structure spots along tracks.
14. Perfect figure 8 tracks for thorough coverage of flats.
15. Manage and back up important tracks for reuse.

The TrackBack feature transforms your fishfinder into a digital recorder of your fishing trips. Master its capabilities to duplicate your success on the water by perfectly recreating productive tracks, fine-tuning patterns for maximum efficiency.

Updating Software and Maps Over WiFi

One of the best features of the Lowrance Hook Reveal 7x TripleShot is the ability to update the system software and inland and coastal maps via built-in wireless connectivity. This ensures you always have the latest features, performance enhancements, and most up-to-date chart data.

The Power of Updates

Frequent software and map updates are critical to getting maximum performance from your fishfinder. The software controls key functions like sonar processing, satellite tracking, and screen display. Map updates add the newest chart data and fishing detail.

Updating over WiFi means you can access the latest upgrades as soon as they are released, right from your own wireless network, keeping your system at the cutting edge.

Software Updates

Here is the process for updating your Hook Reveal’s software:

• Check for updates periodically via the system menu.
• When an update is available, download it directly to the unit.
• After download completes, apply the software update.
• The system will install the update automatically.

Software updates frequently optimize performance and fix bugs. Keeping current ensures peak fishfinder efficiency.

Map Updates

Updating the detailed Lake Insight and Nautic Insight map data follows a similar process:

• Insert an SD card with storage capacity for the map data.
• Select the regions and map expansions you want.
• Download the updated map files directly over WiFi.
• Apply the updated maps to load them onto the SD card.

Updated maps provide the latest, greatest chart data for maximum detail and accuracy.

15 WiFi Update Tips

Follow these tips and tricks for smooth and successful updates:

1. Check for software and map updates regularly.
2. Perform updates dockside via home WiFi for reliability.
3. Update software first, then maps afterward.
4. Have a large capacity SD card dedicated for map data.
5. Select only map regions/expansions you need to conserve space.
6. Initiate downloads manually rather than auto-updating.
7. Check the download progress periodically until completed.
8. Apply software updates as soon as they finish downloading.
9. Verify the change log for new features and fixes.
10. Save old map data to SD card for backup before updating.
11. Delete old map data from SD card after update completes.
12. Consider wiring into your home network for trickle charging too.
13. Troubleshoot weak WiFi issues before attempting downloads.
14. Restart the system after updates to clear memory.
15. Test key functions to ensure proper operation.

Leveraging wireless connectivity to keep your Hook Reveal’s software optimized and maps accurate ensures peak performance and the greatest functionality season after season.

Troubleshooting Common Fishfinder Issues

Having issues with your fishfinder? Don’t reel in your line just yet. With a few handy troubleshooting tips, you can get your depth finder humming and find the fish in no time.

The Screen is Blank

A blank screen is incredibly frustrating, but don’t let it get your bait in a twist. Start by checking that the unit is getting power. Make sure it’s turned on, the battery is charged, and the power cable is connected properly. While obvious, it’s an easy issue to overlook in the heat of the moment.

If the power seems good, try adjusting the brightness. Most fishfinders have a brightness control – crank it up and see if the picture appears. If that doesn’t work, it could be a loose cable connection. Check that the transducer cable is firmly plugged into the back of the unit. Reseat all connections and test again.

Still seeing a blank screen? It may be time to reset the fishfinder. Consult the owner’s manual to find the reset button. Give it a solid push with a paperclip or small tool. This will reset the system and hopefully get the display up and running.

The Screen is Hard to Read

If you’re squinting and struggling to interpret the display, a few settings tweaks can often sharpen the picture. Start by adjusting the contrast; increasing contrast makes structure and bottom details easier to distinguish. You can also try lowering the sensitivity to reduce clutter and noise on screen.

It may also be possible to change the color palette in the fishfinder settings. Cycle through the options to find a scheme that displays sonar information most clearly. Cooler color palettes like blue or green are often easier to interpret than hot colors like red or orange.

Don’t forget to check the transducer too. A dirty, damaged, or improperly mounted transducer can wreak havoc on the display. Inspect it for any cracks or marine growth, and clean it gently with a mild detergent if needed.

No Depth Readings

A fishfinder without accurate depth information leaves you fishing blind. But there are a few easy checks to get it dialed in.

Start by ensuring the transducer is submerged in the water. Obvious, sure, but it’s sometimes overlooked in the shuffle. The transducer needs consistent water contact to function. Remount it a bit lower if needed.

Next, check the transducer cable connection at the back of the unit. Loose connections are a common culprit for blank screens and missing data. Disconnect and carefully reconnect the plug, making sure it’s fully seated.

The transducer itself may also need adjustment. Make sure it’s mounted parallel with the waterline so the sonar beam is aimed straight down. Consult your install guide for the ideal mounting angle.

Changing the channel can also help with intermittent missing data. Try switching to another frequency and see if depth returns improve. Thermalcline and structure can impact readings on certain channels.

Fish Arches are Missing or Poor

Seeing baitfish but the gamefish arches are nowhere to be found? A little tuning can help reveal more targets.

Start by bumping up the sensitivity to show more detail and weaker returns. This amplifies more targets from bait to bigger fish. But keep an eye out for too much noise or clutter.

Narrowing the beam angle can also help sharpen fish arches. A more focused cone gives better target separation. So you may spot fish hidden right under the boat.

Changing frequencies is another option if the current channel is cluttered. Switch to a higher frequency for the best target separation. Or try lower frequencies that penetrate deeper through thermoclines.

And make sure the transducer is aimed straight down. An angled transducer gives incomplete coverage directly under the boat, where fish can lurk unseen.

Readings are Intermittent or Disappearing

A fishfinder signal dropping in and out can mean a wiring or connection issue. Start by inspecting all the power and transducer cables for any damage. Replace damaged cables and firmly reconnect any loose plugs.

Nearby electronics like trolling motors can also interfere with sonar signals. Try temporarily switching off other devices to isolate the issue.

Cavitation from the boat motor lowering and raising can disrupt readings as well. Increase the transducer mounting depth to get it away from the turbulent water.

Thermoclines and structure shadowing are other common causes of intermittent data. Adjust the transducer angle, change channels, or slow your trolling speed to get more consistent coverage.

And don’t forget the basics – make sure the transducer is fully submerged! Running in extremely shallow or choppy water can break up the sonar signal.

With a little troubleshooting time, you’ll have your fishfinder singing again. Stay persistent in working through the potential issues. Patience and tuning now means more fish in the livewell later.

Recommended Accessories and Upgrades

Got a basic fishfinder but looking to unlock its full potential? A few select accessories and upgrades can transform even entry-level models into fish-finding powerhouses. Here are some top ways to pump up your fishfinder’s performance.

Transducer Upgrade

The transducer is the heart of the fishfinder, converting sonar returns into vivid images. Upgrading to a higher-grade transducer can dramatically sharpen your view underwater. Options like CHIRP transducers, triple-shot models, and higher wattage transducers reveal more detail and targets.

For example, a triple-shot transducer combines three sonar beams, giving a wider coverage area and crisper fish arches. The wider beams sweep a larger zone, while the narrow center beam provides pinpoint target separation.

CHIRP transducers continuously sweep a range of frequencies rather than a single fixed frequency. This results in better target resolution and elimination of noise.

And don’t underestimate the impact of increased power – higher wattage transducers return stronger echoes from deeper water and smaller targets like baitfish.

Mapping Upgrade

Basic fishfinders show sonar returns in real time. But mapping upgrades allow you to record sonar data and chart productive areas. Mapping unlocks the fourth dimension of underwater intel – the ability to scroll back through time.

Built-in mapping options are available on many fishfinder models. For basic units, add-on mapping packs can be purchased to unlock contour charting, marking waypoints, and viewing scrollback history.

With strategic use of mapping tools, you can precisely return to locations, analyze trends over time, and improve your overall fishing efficiency.

Networking and Sharing

Modern fishfinder networking unlocks the ability to combine sonar sources for expanded awareness. You can network multiple onboard fishfinders to create a unified picture around the boat. No blindspots or gaps in coverage.

Or integrate onboard fishfinders with other media for enhanced possibilities. Connect to chartplotters to overlay sonar on navigation maps. Or link to smartphones and tablets to monitor depths remotely.

Wireless networking options like Bluetooth and WiFi also enable sharing sonar wirelessly with fellow anglers. This allows “buddy boating” where multiple crews can view each other’s finds in real time.

Structure and Bottom Scanning Accessories

To really unlock next-level fishfinder capabilities, consider adding-on advanced transducers like side-scan, down-scan, or panoptix sonars.

Down-scan transducers point straight down, outputting ultra-high frequencies for photographic images of structure, bottom contours, and fish. Side-scan transducers scan out to the sides, mapping the underwater world in intricate detail.

Panoptix sonars take immersive scanning to the next level. Units like the LiveScope LVS32 transmit real-time video-like live sonar for seeing structure, bait, and predators as they interact.

Advanced scanning options require significant investment but deliver a whole new level of underwater visibility for pinpoint fishing.

Battery Power

Onboard battery packs free fishfinders from the limitations of wired power connections. Portable battery packs last for many hours, allowing all-day operation offshore or remote operation on kayaks and inflatables.

Battery packs come in sizes from compact rechargeable units to large capacity multi-battery rigs. Waterproof cases make them fully protected from the elements.

Portable power opens up flexibility in fishfinder mounting and location. Move it easily from boat to boat or take it on shore without draining starting batteries.

With the right accessories and upgrades, even a basic fishfinder can be transformed into a powerful system. Focus on enhancements that maximize your fishing style – upgrade transducer performance for better coastal finds or add networking for expanded views offshore. The possibilities are as wide-ranging as the waters you fish.
