How does CHIRP sonar technology improve fish detection. What are the key features of Lowrance 5x series fish finders. How to interpret sonar readings for better fishing results. Which mounting options are available for Lowrance 5x units. How to optimize settings for different fishing conditions.

CHIRP Sonar: The Revolutionary Technology Behind Lowrance 5x Series

CHIRP sonar technology is the cornerstone of the Lowrance 5x series fish finders, offering anglers unprecedented clarity and detail in underwater imaging. Unlike traditional single-frequency sonar systems, CHIRP (Compressed High-Intensity Radiated Pulse) emits a wide range of frequencies, resulting in remarkably clear and detailed scans of the underwater environment.

How does CHIRP sonar improve fish detection? By transmitting multiple frequencies simultaneously, CHIRP technology provides:

• Enhanced target separation, allowing anglers to distinguish between closely spaced fish
• Improved depth penetration, especially in deep water conditions
• Clearer definition of structure, bait, and gamefish
• Reduced noise and clearer images in challenging conditions

This advanced sonar system enables anglers to identify individual species based on frequency reflections, a significant advantage over traditional fish finders. The result is a more accurate and detailed representation of the underwater world, helping anglers make informed decisions about where to cast their lines.

Exploring the Lowrance 5x Series: Models and Features

The Lowrance 5x series offers three distinct models, each catering to different angling needs and preferences. Here’s a breakdown of the lineup:

1. Hook Reveal 5x

• 5″ color display
• CHIRP DownScan imaging
• Ideal for vertical scanning of structure and cover

2. Hook 5x SplitShot

• 5″ color display
• CHIRP traditional sonar
• Built-in GPS
• Split-screen capability for simultaneous fish-finding and navigation

3. Hook 5x (Base Model)

• CHIRP sonar without DownScan
• No internal GPS
• Affordable option for premium fish targeting

For anglers seeking the full Lowrance experience, the Hook 5x SplitShot is often recommended. It combines CHIRP sonar, high-sensitivity GPS, and enhanced mapping capabilities in a compact, versatile package measuring less than 7 inches wide.

Navigating with Precision: The Built-in GPS Advantage

One of the standout features of the Lowrance 5x series is the built-in GPS functionality found in select models. This integration offers several benefits to anglers:

• Accurate positioning and mapping directly on the display
• Ability to view depth, mark fishing hotspots, and set tracks
• Seamless navigation from the sonar unit itself
• Expandability into a full navigational system when paired with Lowrance’s C-MAP cartography

How does the built-in GPS enhance the fishing experience? By eliminating the need for a separate GPS device, anglers can streamline their setup and focus on what matters most – finding and catching fish. The compact GPS combo is particularly advantageous for small boats, offering versatility for both inland and offshore waters.

Mastering Lowrance 5x Controls: Tips for Optimal Performance

While the Lowrance 5x series boasts a user-friendly interface, mastering its controls can significantly enhance your fishing experience. Here are some tips to help you make the most of your unit:

Quick Access Functions

• Familiarize yourself with dedicated buttons for waypoint marking and zoom
• Practice using these functions to quickly respond to changing conditions on the water

Customizing Settings

• Explore menu options to fine-tune sonar settings
• Adjust map views to suit your preferences
• Set alarms for depth, fish detection, or other parameters

Utilizing the Help Menu

• Access the built-in help menu for guidance on specific settings
• Refer to this resource when encountering unfamiliar features or functions

By investing time in learning and customizing your Lowrance 5x unit, you’ll be able to maximize its potential and improve your fishing success.

Mounting Options: Choosing the Right Setup for Your Boat

Proper mounting of your Lowrance 5x fish finder is crucial for optimal performance and ease of use. Consider the following options when installing your unit:

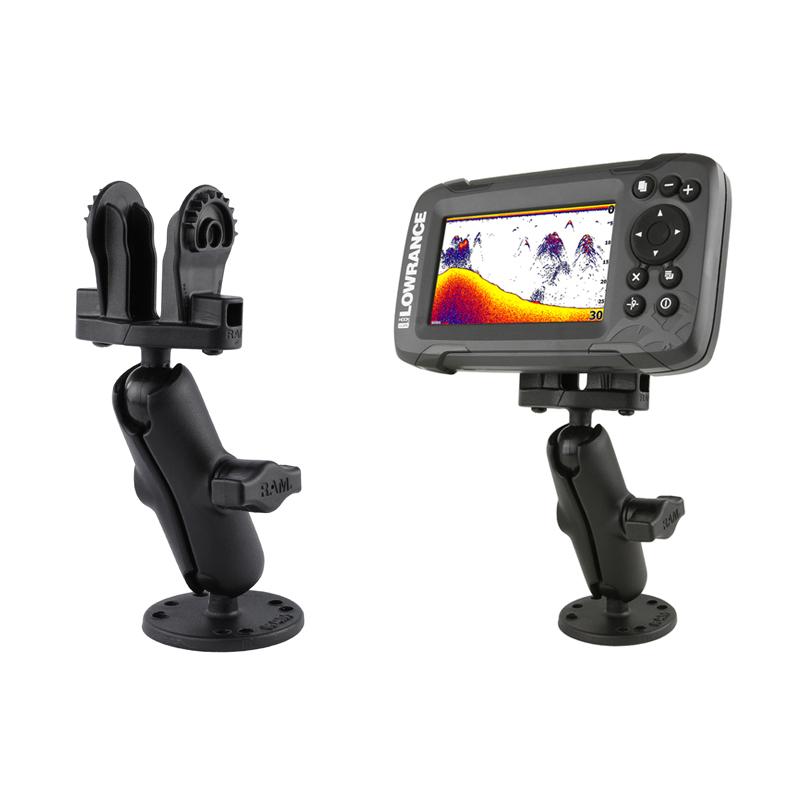

Universal Swivel-Bracket Mount

• Offers versatile viewing angles
• Allows tilting for visibility while standing or sitting
• Ideal for various boat types and sizes

Tilt/Stow Cradle Mount

• Enables quick stowing of the unit when not in use
• Protects the device during transport or rough conditions

Adjustable Trolling Motor Mount

• Suitable for smaller craft
• Allows for easy repositioning of the unit

When installing your Lowrance 5x, consider the following tips:

• Use built-in cable management slots for a clean, organized installation
• Position the mount for easy access and optimal scanning coverage
• Ensure the unit is securely fastened to prevent damage during rough conditions

By choosing the right mount and taking care during installation, you’ll ensure your Lowrance 5x is ready to perform at its best on every fishing trip.

Decoding Sonar Readings: Interpreting Lowrance 5x Display

Understanding how to interpret the sonar readings on your Lowrance 5x display is crucial for successful fishing. Here’s a guide to help you decipher the information presented:

Identifying Key Elements

• Baitfish: Look for dense schools appearing as clouds near bottom structure
• Predatory Fish: Watch for isolated arches indicating larger fish on the hunt
• Structure: Identify drop-offs, humps, and cover that attract fish

Adjusting Sensitivity

• Fine-tune sensitivity settings to distinguish subtle fish signals from background noise
• Experiment with different sensitivity levels based on water conditions and target species

Understanding Environmental Factors

• Consider how season, weather, and water temperature impact sonar views
• Learn to recognize patterns associated with specific fishing conditions

How can you improve your sonar interpretation skills? Practice is key. Spend time on the water observing how different underwater features and fish appear on your Lowrance 5x display. Take notes and compare your observations with actual fishing results to refine your understanding over time.

Optimizing Settings for Various Fishing Conditions

To maximize the effectiveness of your Lowrance 5x fish finder, it’s essential to adjust settings based on the specific fishing conditions you encounter. Here are some tips for optimizing your unit:

Deep Water Settings

• Increase ping speed for faster updates
• Widen the beam angle to expand coverage area
• Adjust frequency settings for better depth penetration

Shallow Water Adjustments

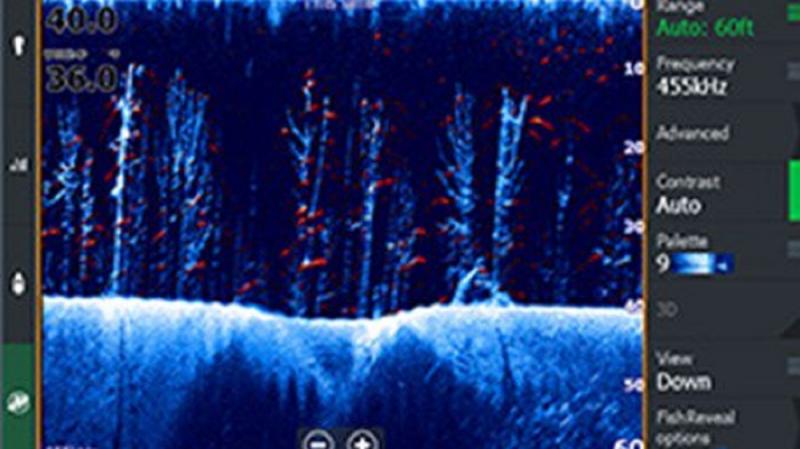

• Switch to DownScan for ultra-sharp views in clear, shallow areas
• Reduce sensitivity to minimize bottom clutter
• Experiment with different color palettes for improved visibility

Adapting to Water Clarity

• Increase sensitivity in clear water for better target separation
• Decrease sensitivity in muddy water to reduce noise
• Use FishReveal feature to highlight fish targets when navigating at speed

Why is it important to adjust settings for different conditions? By fine-tuning your Lowrance 5x to match the specific environment you’re fishing in, you’ll be able to more accurately locate and target fish, ultimately improving your chances of success on the water.

Networking Capabilities: Expanding Your Lowrance 5x System

The Lowrance 5x series offers impressive networking capabilities, allowing anglers to create a more comprehensive and integrated fishing system. Here’s how you can leverage these features:

NMEA 2000 Connectivity

• Connect your 5x unit to other compatible devices via NMEA 2000 protocol
• Share data between multiple displays and sensors
• Integrate with autopilot systems for enhanced navigation

Expanding Functionality

• Link your 5x SplitShot to a Lowrance Outboard Pilot for autopilot control
• Connect to additional sensors for enhanced data collection (e.g., water temperature, speed)
• Integrate with other Lowrance components for a customized fishing setup

Future-Proofing Your System

• Consider networking capabilities when planning your marine electronics setup
• Invest in compatible components to create a scalable system
• Stay informed about firmware updates and new accessories to enhance your 5x unit

How can networking improve your fishing experience? By connecting your Lowrance 5x to other devices and sensors, you can create a more comprehensive and efficient fishing system. This integration allows for better decision-making on the water, as you’ll have access to a wider range of data and control options.

As you continue to explore the capabilities of your Lowrance 5x series fish finder, remember that mastery comes with practice and experimentation. Take the time to familiarize yourself with the various features, settings, and networking options available. By doing so, you’ll be well-equipped to make the most of this powerful tool and enhance your fishing success.

Whether you’re targeting specific species, exploring new fishing grounds, or simply looking to improve your angling skills, the Lowrance 5x series offers a wealth of features to support your goals. From its advanced CHIRP sonar technology to its user-friendly interface and networking capabilities, these fish finders represent a significant leap forward in marine electronics.

As you apply the tips and techniques discussed in this guide, you’ll find yourself becoming more proficient in using your Lowrance 5x unit. This increased proficiency will translate into more productive fishing trips, as you’ll be better equipped to locate fish, understand underwater structures, and navigate efficiently.

Remember that the key to success with any fish finder is continuous learning and adaptation. As you gain experience with your Lowrance 5x, don’t hesitate to experiment with different settings and techniques. Share your experiences with fellow anglers, and stay open to new ideas and approaches. With dedication and practice, you’ll soon be leveraging the full potential of your Lowrance 5x series fish finder to revolutionize your fishing experience.

Introduce the Lowrance 5x Series Fish Finders

Fishing enthusiasts, it’s time to step up your sonar game with the Lowrance 5x series. As an avid angler myself, I know the struggle of fighting fish blind. But with Lowrance’s innovative sonar technologies, locating fish becomes a breeze. In this article, I’ll introduce you to the capabilities of the 5x series and provide tips to master these units for next-level fishing.

CHIRP Sonar – The Game Changer

What sets the Lowrance 5x finders apart? One word – CHIRP. This advanced sonar system emits a wide range of frequencies, resulting in amazingly clear scans. Traditional fish finders use a single frequency beam, which can have gaps in coverage. But CHIRP sees structure, bait, and gamefish in intricate detail. It even lets you identify individual species based on frequency reflections. Talk about a massive upgrade for spotting fish!

The Built-In GPS Advantage

The Lowrance 5x models also boast built-in GPS antennas. This enables excellent positioning and mapping right on the display. No more guessing your location or fumbling with a separate GPS device. With the 5x, you can view depth, mark fishing hotspots, set tracks, and navigate from your sonar itself. Versatile options like SplitShot allow expansion into a full navigational system when linked to Lowrance’s C-MAP cartography. For small boats like mine, it’s a compact GPS combo ideal for both inland and offshore waters.

Breaking Down the 5x Line-Up

Lowrance offers three options in the 5x series – the Hook Reveal 5x, Hook 5x Splitshot, and standard Hook 5x. Let’s compare their capabilities:

• The Hook Reveal 5×55 has a 5″ color display with CHIRP DownScan imaging. It’s perfect for vertical scanning to see structure and cover below.
• The Hook 5x Splitshot adds GPS along with CHIRP traditional sonar. Its 5″ display splits to show both fish-finding and navigation.
• The base Hook 5x has CHIRP sonar without DownScan or internal GPS. It delivers premium fish targeting at an affordable price.

Weigh your needs, but for the full Lowrance experience, I recommend the Hook 5x SplitShot. It brings together smooth CHIRP sonar, high-sensitivity GPS, and enhanced mapping into one intuitive system. And at under 7 inches wide, it mounts just about anywhere!

Mastering the Controls

Setting up the 5x series is simple with the user-friendly interface. Dedicated buttons allow quick access to functions like waypoint marking and zoom. The menu options also make customizing a breeze. You can fine-tune sonar, tweak map views, set alarms – the possibilities are endless. But if you ever get stuck, the built-in help menu gives guidance on all the settings. Even tech novices like myself can master these fish finders in no time.

Choosing the Ideal Mount

Mounting your 5x properly ensures optimal performance on the water. I prefer the universal swivel-bracket mount for versatile viewing angles. It allows tilting the display for visibility while standing or sitting. Lowrance’s tilt/stow cradle mount lets you quickly stow the unit flat when not in use. For smaller craft, an adjustable trolling motor mount does the trick. Remember to use the built-in cable management slots for a clean install. Take time to position the mount in your boat for easy access and scanning coverage.

Interpreting the Sonar Readings

Once you hit the water, the Lowrance 5x display comes alive with CHIRP sonar imagery. At first, it can be tricky deciphering all the signals onscreen. Here are some tips for identifying key elements:

• Look for dense schools of baitfish hovering as clouds near bottom structure.
• Note isolated arches marking larger predatory fish on the hunt.
• Set sensitivity to distinguish subtle fish signals from noise.
• Check for drop-offs, humps, and cover that attract fish.

With practice, you’ll learn how factors like season, weather, and water temperature impact the sonar views. Mastering interpretation is vital for locating prime fish zones.

Tuning Settings for Conditions

Adapting sonar and display options as conditions change is the hallmark of a seasoned angler. Here are my tweaks for common scenarios:

• In deep water, increase ping speed and widen the beam angle for expanded coverage.
• Adjust sensitivity higher in clear water and lower in muddy water to reduce noise.
• Use FishReveal to highlight fish targets when navigating at speed.
• Switch to DownScan for ultra-sharp views in shallow, clear areas.

The more time you spend fine-tuning for conditions, the better your Lowrance performs. Mastering the settings pays off big when fish are finicky.

Networking Capabilities

Here’s an awesome capability of the 5x series – you can network them! Via NMEA 2000, I linked my 5x SplitShot to my Lowrance Outboard Pilot for autopilot control right from the fishfinder. Many Lowrance components are compatible, allowing integrated boat systems. Extend sonar scanning, get smartphone notifications, and more when you network your 5x.

Smartphone and Tablet Viewing

Want to monitor your Lowrance 5x from anywhere on the boat? I use the free Insight Genesis app to view the full sonar and mapping on my phone. It even lets you tweak settings and mark waypoints remotely. For at-home planning, explore C-MAP cartography on your computer too. Then load it to the 5x via SD card or direct link. Total sonar control from all your devices!

Battery Options

Maintaining power is crucial when fishing off-grid. The 5x SplitShot has an internal lithium-ion battery offering up to 10 hours scanning time. For all-day trips, I bring an external battery pack as backup. Lowrance’s waterproof PowerPack battery case makes for protected, portable power anywhere. There’s also a 5x model with traditional 12v battery hook-up for full-time charging.

Choosing Transducer Types

A key part of your 5x setup is selecting the right transducer. Models like the SplitShot include the triple-shot transducer for versatile CHIRP, DownScan, and high-speed capability. For dedicated DownScan views, I use the StructureScan HD transducer. And Lowrance’s ActiveImaging 3-in-1 is the ultimate all-rounder. Match your transducer to your fishing needs and conditions for peak fish finding.

Accessorize and Protect

To complete your 5x package, check out Lowrance’s accessory line-up. Protective sun covers and screens offer glare reduction and impact defense. Rod mounts like the Railblaza Starport keep your finder accessible. And transducer mounts from RAM provide stable scanning on trolling motors, jackplates, and tunnels. Find the perfect add-ons to customize your rig.

Unlock Next-Level Fishing with the Lowrance 5x Series

Ready to take your fishing game to new depths? The Lowrance Hook 5x finders make it happen with best-in-class CHIRP sonar, high-sensitivity GPS, and versatile displays. Dialing in the settings and mastering interpretating the scans is simple with a bit of practice. Add in an intuitive interface, rugged construction, and versatile mounting, and the 5x series offers the total package for next-level fishing. Whether sight casting, trolling, or navigating, these units have all the weaponry you need to locate fish. Take advantage of modern CHIRP power and watch your catch counts soar!

Highlight Key Features like CHIRP Sonar and Built-In GPS

The Lowrance 5x finders bring some serious tech to the table for next-gen fish locating. Let’s break down the capabilities that make these units a cut above the rest:

CHIRP Sonar – Precision Targeting

CHIRP sonar is a total game-changer compared to traditional fish finders. It transmits an array of frequencies rather than just one fixed beam. The result? Freakishly clear target separation and definition. You can spot fish hanging in structure or bait balls that single frequency units would completely miss. CHIRP even lets you identify individual species based on the distinct reflections. It’s like having x-ray vision underwater to pinpoint fish locations precisely.

Built-In GPS and Mapping

Having an internal GPS antenna integrated right in the display is a massive advantage. The 5x units provide accurate positioning without the hassle of external GPS modules. And with the included C-MAP cartography, you get detailed lake maps, high-res satellite imagery, and inland navigation views. The SplitShot display divides to show both fish-finding and charting simultaneously. For small craft, it’s ideal for navigating unfamiliar lakes and exploring new waters efficiently.

Versatile Mounting and Portability

At just 6.5″ wide, these compact finders adapt to all kinds of boats. The tilt/swivel bracket provides flexibility to adjust the viewing angle when sitting or standing. For kayaks and canoes, the quick-release mount makes it easy to take the finder onboard or off in seconds. And the internal lithium battery in models like the SplitShot allows all-day fish finding even on small boats lacking a 12v system. Talk about versatility for fishing on-the-go!

Easy-To-Use Interface

Lowrance nailed it with the 5x’s intuitive interface. Dedicated zoom buttons allow drilling down on key scans with one touch. Customizable quick keys give instant access to your most-used functions. And the detailed menu options let you dial in sonar, mapping, and system settings exactly how you like. Yet it all remains user-friendly even for total fish finder newbies. You’ll be scanning like a pro after the very first trip.

Smartphone and Tablet Integration

Here’s a cool capability – you can view and control the full Lowrance interface right from your phone or tablet. The free Insight Genesis app mirrors the 5x display in real-time for remote monitoring. You can adjust sonar, navigation, and waypoints right in the palm of your hand. Plus at-home planning with Insight’s Web App helps you prep interactive maps to load later. Total fishing integration across all your devices!

With premium sonar power, built-in GPS, multi-device networking, and user-friendly control, the Lowrance 5x units truly raise the bar for fish finding performance. Take your fishing into the next generation with these feature-packed finders.

Compare 5x SplitShot, Hook Reveal 5x, and Hook 5x Models

With three options in the 5x lineup, Lowrance offers a model suited for every fishing style and need. Let’s look at how the SplitShot, Hook Reveal, and base Hook compare:

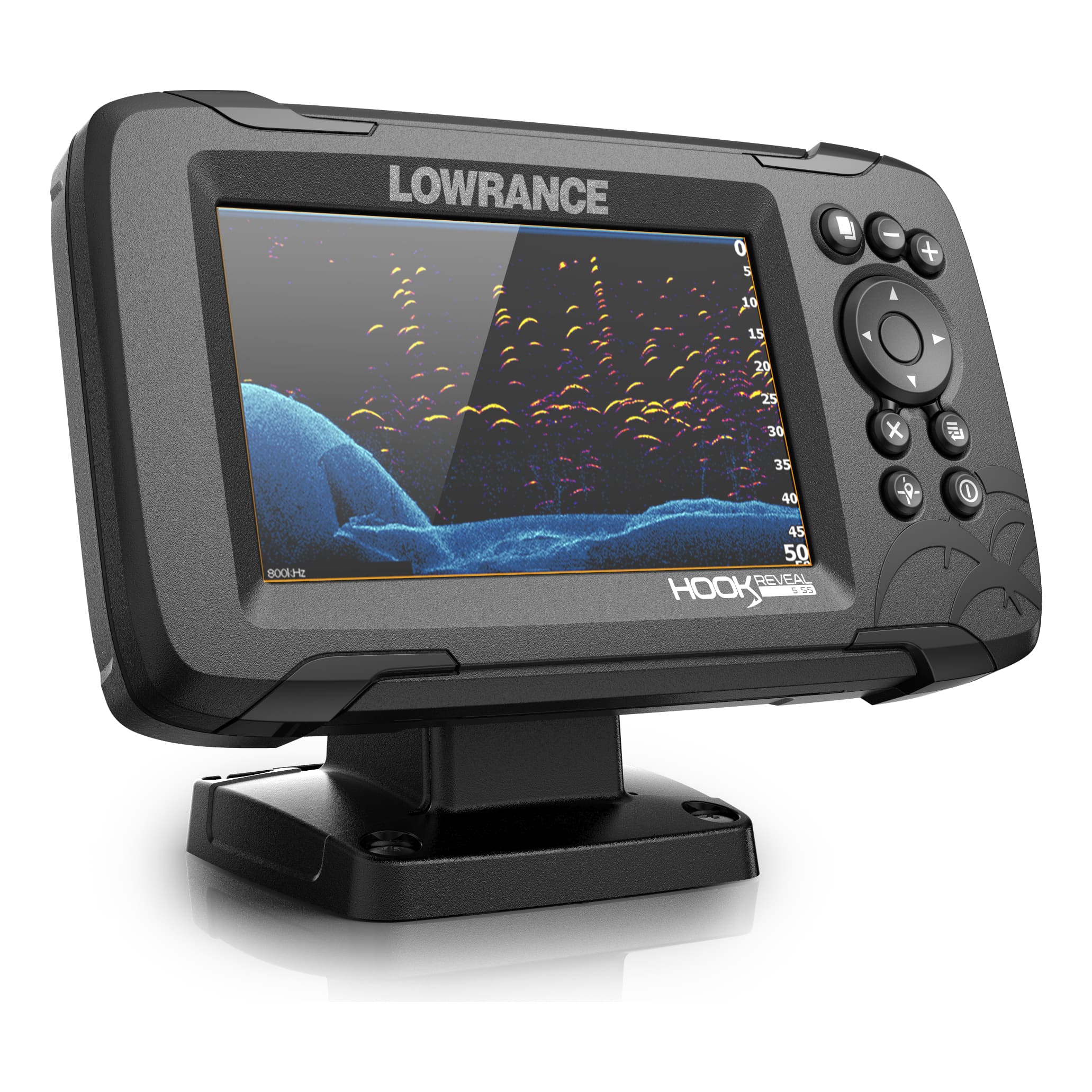

Lowrance Hook Reveal 5x

The Hook Reveal 5×55 packs premium capability into a compact 5″ display. It features CHIRP DownScan sonar for ultra-sharp scanning of structure and bottom contours in intricate detail. Advanced signal processing isolates fish from structure. Reveal mode highlights fish targets for easier identification when cruising or drifting. It’s ideal for vertical fishing in relatively shallow water.

Lowrance Hook 5x SplitShot

This middle unit brings together the best of both worlds – CHIRP sonar plus internal GPS. The display splits to show sonar views and navigation/mapping simultaneously. The basemaps include detailed lake and coastal charts, high-res satellite imagery, and inland roads. Waypoint marking, chart plotting, and trailer tracking provide complete navigational capability. It’s the premium choice for nearshore and inland fishing.

Lowrance Hook 5x

The standard Hook 5x offers CHIRP sonar power in a streamlined unit without DownScan or GPS. It’s the affordable way to upgrade to next-gen fish finding on a budget. The large 5″ display provides ample room to view sonar readings. The simple interface is easy-to-use even for fishing novices. For small craft needing just premium sonar, it’s a great choice at this price point.

When comparing, think about your typical fishing environment, navigational needs, and budget. The Hook Reveal shines for targeting structure-oriented fish with sharp DownScan. The SplitShot adds full GPS while keeping the CHIRP sonar. And the base 5x provides premium fish finding affordably. Choose the model aligned with your fishing style.

Expanding Capability

The cool thing about the 5x finders is expandability. Even the base model can grow into a complete system over time. Add the wireless SplitShot transducer later for DownScan upgrades. Or expand with GPS puck, autopilot, and StructureScan compatibility. Start with the basics, then build out capabilities as your needs evolve.

No matter which 5x model you choose, they all deliver next-gen Lowrance fish finding. Dial in the perfect options for your fishing and boating needs now, then grow the system as your experience progresses.

Explain How CHIRP Sonar Boosts Clarity and Detection

CHIRP sonar is truly game-changing technology for the avid angler. But what exactly makes it so revolutionary? Here’s an inside look at how CHIRP boosts clarity and fish detection compared to traditional sonar:

Wider Frequency Ranges

Older fish finders emit a single frequency beam, like 200 kHz. But CHIRP transmits an array of frequencies across a wide spectrum – such as 140 to 210 kHz. This expanded sweep provides much more sonar sampling and coverage. Think of it like switching from a 1980s analog TV to today’s ultra-HD.

Less Noise, Crisper Target Separation

With single frequency sonar, noise from structure, baitfish, and thermoclines can clutter readings. But CHIRP’s advanced signal processing filters out noise and isolates true targets. Fish and structure appear with crisp definition instead of just fuzzy blobs. You can even pick out individual species based on frequency reflections.

Enhanced Bottom Detail

CHIRP sonar digitizes an amazing 455,000 samples per second for unmatched image detail. The wide frequency range reveals bottom structure like never before. See every rock pile, drop-off, weedline to find the sweet spots fish love to hide. CHIRP even shows subtle composition changes – sand to gravel to hard bottom.

Deeper Depth Penetration

The lower end of the CHIRP frequency spectrum includes longer wavelength beams that reach deeper than single fixed beams. So you get enhanced sonar coverage both deep and shallow. Dual channel CHIRP even allows customized frequencies for specialized targeting.

CHIRP sonar technology makes older units seem ancient by comparison. The clarity, target separation, noise reduction, and depth coverage help you find fish other systems miss. Once you experience CHIRP, you’ll never rely on traditional sonar again!

Discuss Advantages of Built-In GPS and Mapping

Having an internal GPS antenna integrated right in the display is a huge benefit of the Lowrance 5x series. Let’s look at the key advantages built-in mapping and GPS delivery:

No External Modules Needed

Older systems required hooking up an external GPS puck for navigation data. But the 5x units bake GPS right in with the high-sensitivity antenna. No more cluttered wiring and sacrificing space for a separate GPS unit. And without an external antenna, installation is simpler and more streamlined.

Enhanced Mapping Capability

With the built-in C-MAP cartography, you get crisp lake contour maps, satellite imagery overlay, and detailed coastal charts right on the display. Many units even include inland road maps for easy trailering. And you can expand mapping by loading supplemental SD cards or connecting to accessories.

Full Navigation and Plotting

The 5x’s internal GPS transforms the units into complete navigational systems. You get accurate positioning, customizable waypoint marking, route plotting, and return-to-course guidance. Even tiny boats can navigate like pros with the 5x systems.

Split-Screen Sonar and Navigation

Select 5x models include split-screen views showing both fishfinding and mapping simultaneously. It’s the best of both worlds without toggling back and forth. Stay oriented on your route while still spotting fish arches and structure below.

Smartphone and Tablet Integration

With mobile apps like Insight Genesis, you get full navigation and sonar control right from your phone or tablet. View GPS, tweak waypoints, monitor sonar, all remotely for the ultimate fish finding network.

Stop dealing with add-on GPS hassles. The built-in capability of the 5x finders simplifies installation while bringing expanded navigation and mapping to even small craft. Integrated GPS is the next evolution in all-in-one fish finding.

Review Easy-To-Use Interface and Controls

With all the technology packed into the Lowrance 5x units, you may think they’d be overly complex to use. But Lowrance nailed it with an intuitive interface even a total fish finder novice can master in no time.

Dedicated Buttons

The 5x units include prominent buttons for core functions like zoom, waypoint marking, and menu access. With a single push, zoom in on sonar details or mark a promising fishing spot. No digging through submenus trying to find basic controls.

Customizable Keys

Personalize the interface by setting any function to the customizable “A” and “B” buttons. I assign mine to frequently used settings like sensitivity or FishReveal mode. Now my go-to adjustments are right at my fingertips.

Easy Page Selection

Quickly switch between key pages like sonar, navigation, and DownScan imaging via on-screen prompts or page keys. The pages menu lets you customize the displays too – say showing dual sonar frequency views.

Intuitive Menu System

The main menu is well-organized and easy to navigate. Drill into sonar, mapping, alarms, device settings and more to dial in the perfect configuration. The interface flow is logical and user-friendly. You’ll have advanced customizations mastered quickly.

Built-in Tips and Help

If you ever get stuck, just tap the help key for guidance on the current screen and settings. Instructional tips are context-sensitive for the page you’re viewing. There’s no more fumbling through complex manuals trying to find answers.

Lowrance created a fish finder interface anyone can command like a pro. Thoughtful design, customizable controls, and intuitive menus remove the learning curve. Just power up and start scanning – it’s that easy.

Provide Tips for Mounting and Installation

Proper mounting is key to getting top performance from your Lowrance 5x finder. Based on my experience, here are some tips for seamless installation:

Choose a Stable Location

Pick a spot with minimal vibration and impact for clearest sonar. Near the console or bow work well on smaller boats. Avoid windshields prone to flexing. Test locations at speed for stability before permanently installing.

Angle for Visibility

Consider viewing angles when mounted. The adjustable swivel-bracket mount lets you tweak the tilt during or after installation.Aim to reduce glare while providing clear views standing or seated.

Allow Space for Cables

Leave room behind the unit in your mounting cutout for running cables cleanly. Use the built-in cord management slots to prevent pinching. Adequate clearance prevents damaging wires.

Use Backup Electrical Circuits

Hardwire the 5x to an electrical circuit with inline fuse, but avoid shares circuits prone to overload. Add a secondary inline fuse for protection too. Reliable, dedicated power prevents issues.

Test Transducer Placement

Experiment with different transducer positions to find the optimum balance of depth reading and fish detection. In-hull shoots through the bottom, while transom mounts read farther away.

Update Software and Maps

Before hitting the water, update to the latest software and C-MAP charts via SD card or WiFi. Get fully dialed in with all the newest features and mapping data.

Patience during installation pays off with better long-term reliability and performance. Follow these tips and you’ll be scanning the depths like a pro in no time.

Explain How to Interpret Sonar Readings and Fish Arches

When you start using your Lowrance 5x finder, it can be tricky deciphering all the images onscreen. Here are some tips for identifying key sonar elements:

Look for Bait Balls

Clouds of small baitfish will appear as grouped arches or amorphous blobs near structure. Baitballs attract predators, so fish around them!

Note Hard Returns from Structure

Extended straight lines across the bottom indicate hard structure like ledges and wrecks. Irregular blobs are softer like weed growth. Fish hold on hard structure.

Watch for Suspended Fish Marks

Isolated arches higher up in the water column typically indicate larger roaming fish. They often move quickly as they hunt compared to bottom dwellers.

Check Movement Speed and Direction

Notice if arches steadily move left or right – likely passing fish. Arches moving top to bottom are fish approaching the boat. Use motions to your advantage.

Set Sensitivity to Clarify the Screen

Too much sensitivity results in a screen cluttered with noise. Adjust to just show clear returns and reduce background fuzz.

Understand Thermal Layers and Currents

Wavy horizontal lines are thermoclines separating water temperatures. Downward arcs indicate current direction. Both congregate bait and feeding fish.

With some on-the-water experience, you’ll quickly interpret sonar readings and find the fish-holding spots. Mastering your finder is all about time on the water observing patterns.

Share Ideal Settings for Different Water Conditions

One key to mastering your Lowrance 5x is optimizing the settings for current conditions. Here are my tweaks for various fishing scenarios:

Clear Water – Dial Down Sensitivity

In extremely clear water, lower sensitivity to reduce surface noise and clarify true returns. Too much gain makes the screen cluttered.

Cold Water – Increase Ping Speed

Faster ping rates help detect lethargic cold water fish tucked close to structure. I bump my pings per second to max in frigid conditions.

Deep Water – Widen Beam Angle

For vast deep water coverage, open up the sonar cone angle to extend the search width. Narrow beams work better in shallow areas.

Cover Water Quickly – Enable FishReveal

Moving at trolling speeds, FishReveal highlights fish icons clearly onscreen. It filters out messy bottom returns at speed.

Murky Water – Adjust Frequencies

Lower frequencies like 50kHz penetrate silt and debris better than 200kHz. Mix modes for deep and shallow viewing in dirtier water.

Tailoring the sonar settings to conditions helps isolate targets precisely. Learn how factors like temperature and clarity impact fish behavior, and adjust accordingly to enhance readings.

Highlight Networking Capabilities with NMEA 2000

Here’s a cool advanced feature of the Lowrance 5x units – the ability to network with other systems via NMEA 2000. This opens up all kinds of possibilities:

Link Accessories Like Autopilots

I connected my 5x SplitShot to a Lowrance Outboard Pilot using the NMEA 2000 network. Now I control the trolling motor right from the fishfinder display for hands-free operation.

Expand Sonar Coverage

Add remote accessory sensors to get transducer readings from multiple locations on the boat. See invisible in-hull sonar beside downriggers or trolling areas.

Get Notifications Anywhere onboard

NMEA 2000 allows transmitting finder data to other displays like my baitwell monitor. I get depth, temperature, and fish alarms anywhere I am.

Integration with PowerPoles

Tie a PowerPole shallow water anchor into the network and control it right from the 5x interface. Deploy and stow poles instantly while fishing structure.

Enhance Navigation

With an AIS receiver added to the network, the 5x displays proximity alerts for nearby vessels right onscreen. Plus you expand GPS capability.

The NMEA 2000 backbone enables powerful system expansion and integration. Tap into the capabilities to take total command of your boat from a single finder.

Cover Ability to View Sonar on Smartphone or Tablet

Hooking up your smartphone or tablet to your Lowrance fish finder can take your fishing experience to the next level. With the ability to view real-time sonar readings, underwater maps, navigation data and more right on your mobile device, you’ll have an invaluable edge for finding fish and navigating unfamiliar waters. However, unlocking these capabilities requires selecting the right Lowrance model and accessories. In this guide, we’ll provide tips for newbies on how to master the Lowrance 5x Series fish finders for viewing sonar on your smartphone or tablet.

The key to streaming sonar data from your Lowrance fish finder to a mobile device is utilizing wireless connectivity. Newer Lowrance models like the Hook Reveal 5×55 and Hook 5x Splitshot have built-in wireless functionality that allows linking to the Lowrance smartphone app over a direct WiFi connection. This gives you real-time sonar readings and the ability to mark waypoints, set alarms and even operate the fish finder right from your phone or tablet. It’s an incredibly handy feature for managing multiple lines or covering more water when bank fishing.

If your older Lowrance 5x fish finder lacks wireless capability, the Lowrance ActiveTarget Live accessory can add this connectivity. This small wireless module easily mounts on your finder and broadcasts sonar data directly to the app on your mobile device. It’s compatible with most Lowrance models, providing an affordable upgrade path to enable wireless viewing.

Once you’ve verified that your 5x fish finder supports wireless streaming, downloading the Lowrance smartphone app is the next step. Available for both iOS and Android, the app walks you through securely connecting with your finder over WiFi and accessing its capabilities on your phone. The sonar data streams in real-time, allowing you to monitor depth changes, structure, fish and more whether you’re at the helm or on the bow.

When it comes to actually using the sonar capabilities on your mobile device, the experience is very similar to using the 5x fish finder itself. You can adjust the frequency, sensitivity, range and more right from the app. Anywhere you have a cellular or WiFi signal, you can view the underwater environment and mark waypoints just like sitting at the finder. It’s an amazing tool for confirming that fish are still holding on a piece of structure when you can’t see the finder.

One cool advanced capability offered by the app is overlaying Lowrance’s Genesis Live on-shore maps with the real-time sonar feed. This allows you to see the underwater contours and fish locations in relation to geographic features for improved navigation and fish targeting. You get the benefit of both traditional sonar and detailed mapping blended together.

When using the app, keep in mind that the WiFi signal from the fish finder has a limited range. You’ll need to stay within about 100 feet for reliable connectivity, less if there are obstructions like a boat cabin in between. Signal strength is displayed in the app so you can monitor connectivity. Consider mounting an external WiFi antenna on your finder if you need more range.

Battery life is another factor to keep in mind when streaming sonar to your phone. Broadcasting WiFi and sonar data over the air does drain finder batteries faster than normal use. You can limit the wireless radio to 5 minutes at a time which helps conserve battery life. Quickly toggling WiFi on to check readings then off again is a good habit to get into.

One last tip for newbies is to play around with tablet mounts on your boat. Larger tablets or smartphones can be easier to see in bright, outdoor conditions. Some gel cases even allow attaching your tablet directly to the fish finder for the ultimate integrated setup. Get creative with RAM mounts to find an arrangement that works for you.

Unlocking the ability to view real-time sonar on your mobile device is game changing capability. As long as your Lowrance 5x fish finder supports wireless connectivity, it opens up an invaluable extra perspective for understanding underwater structures, spotting fish and navigating new areas. Focus on range, battery life and mounts to master streaming sonar to your smartphone or tablet and take your fishing expertise to the next level.

Discuss Power Options Like Internal Lithium Ion Battery

Reliable power is crucial for getting the most out of your Lowrance fish finder. While models like the Hook Reveal 5×55 and Hook 5x Splitshot offer the convenience of built-in rechargeable Lithium Ion batteries, they also support external power options that provide extended runtimes. In this guide, we’ll break down the pros and cons of different power sources for newbies looking to master the Lowrance 5x Series.

The internal Lithium battery included with Lowrance 5x fish finders provides ample power for average fishing trips. Offering up to 10 hours of operation, it’s suitable for shorter days on the water. The battery charges via micro USB which enables topping it off through a variety of methods. Many anglers appreciate the simplicity and portability of the integrated rechargeable battery.

However, for all-day fishing trips or tournaments, an external supplemental power source is recommended. This prevents you from draining the internal battery prematurely. External options include connecting the 5x finder directly to your boat battery, using a portable power bank, or opting for a higher-capacity rechargeable battery pack.

Wiring your Lowrance directly to your boat’s 12V or 24V battery via the power cables provides continuous, unlimited power. This is the best option for extended trips where you’ll be running the finder for 8+ hours straight. It does require some basic electrical wiring skills to connect the power cables to boat battery terminals or bus. The finder cables should have an inline fuse for safety.

Portable USB power banks offer a flexible external power option without any wiring. Models with at least 5000 mAh capacity can provide all-day power for a 5x finder. Waterproof designs are best to withstand splashing and exposure on the boat. You’ll need to periodically recharge the power bank itself overnight.

For a plug-and-play power upgrade, Lowrance’s Lithium Ion Battery Pack can extend run times. Offering 24+ hours of power, it simply plugs into the finder’s power port like the internal battery, but lasts over twice as long. It does add some cost, but provides set-it-and-forget-it convenience.

When powering your finder externally, the internal battery acts as a useful backup if your main supply fails or cables disconnect. The Lowrance will automatically switch to the internal battery so you’re not left without sonar in an emergency. This fail-safe capability provides peace of mind whenDependent on your style of fishing, you’ll need to balance convenience against extended runtime when choosing a power configuration. Here are some tips based on different scenarios:

• For all-day tournaments, wiring to the boat battery is your best bet.
• For boating and coastal fishing, the internal battery alone is often sufficient.
• For kayak fishing, use a waterproof power bank for portable flexibility.
• For bank fishing, the external Lithium Ion pack provides longevity without wires.

Regardless of your approach, make sure to regularly recharge the internal battery during storage. Allowing it to completely drain over months when not in use can cause permanent damage. Some anglers even remove the internal battery entirely during long-term storage to be safe.

Monitoring your battery usage is also advised to avoid abrupt shutdowns on the water. The Lowrance interface displays the approximate battery charge, but connecting a standalone voltage meter provides more granular tracking. Watching the voltage drop over time gives you a sense of remaining runtime.

No matter if you’re relying on the integrated rechargeable battery or adding an external power source, bringing along backup options is always a good idea. A small USB power bank takes up little space as an emergency fail-safe. Alternatively, extra fully charged internal batteries work too. It never hurts to have redundancy when powering mission-critical gear.

Don’t let power capacity limit the capabilities of your Lowrance 5x fish finder. Pairing the internal battery with wired or portable external options provides the extended runtimes needed for long fishing days. Use battery voltage and redundancy to your advantage for uninterrupted sonar. Mastering power management will let you focus on catching fish rather than worrying about dying batteries.

Compare Transducer Options Like TripleShot and SplitShot

Fishing enthusiasts! Ever feel like your trusty rod, reel, and tackle just aren’t enough sometimes? Upgrading to a quality fish finder can truly take your fishing game to the next level. And when it comes to reliable, feature-packed fish finders that won’t break the bank, it’s hard to beat the Lowrance 5x series.

But with different transducer configurations like SplitShot, TripleShot, and Hook Reveal, it can get confusing trying to choose the right 5x model for your needs. Let’s break it down so you can make an informed decision.

What’s a Transducer?

The transducer is essentially the “business end” of your fish finder. Mounted on the hull of your boat, a transducer sends sonar waves into the water and translates the returning echoes into the underwater views you see onscreen. Different transducer designs have varying levels of performance.

SplitShot Transducer

The most affordable Lowrance 5x options like the Hook2 5x come equipped with the SplitShot transducer. It has two sonar beams – one facing down and one angled slightly forward. This gives you a view directly below the boat as well as a short distance ahead, helping you locate fish-holding structure. SplitShot excels at producing clear bottom detail in shallow to medium depths. Just don’t expect to see as far ahead as other transducer configurations.

TripleShot Transducer

A step up from SplitShot, the TripleShot transducer on models like the Hook Reveal 5×55 has three sonar beams. The additional beam facing straight forward gives you a much wider coverage area ahead of the boat. You’ll be able to see bait balls and gamefish at greater distances and over a larger area, increasing your chances of zeroing in on productive spots.

HOOK Reveal Combination Transducer

Unique to the Hook Reveal 5×55, this transducer combines both SplitShot and TripleShot technology. Switching between the two modes allows you to optimize sonar coverage for either broad scanning ahead or superior target separation directly below the boat. Having both options in one transducer really gives you the best of both worlds.

Additional Features

Beyond the transducer, the 5x series offers a full suite of helpful fishing features. CHIRP sonar technology delivers amazingly clear target separation at all depths. Advanced signal processing isolates fish from surrounding cover. Bottom tracking keeps the bottom locked onscreen as the terrain changes. The FishReveal symbol identifies targets likely to be gamefish. All these tools help you find fish faster and with greater accuracy.

user-friendly Interface

Even with all its capabilities, the 5x remains very easy to use thanks to the intuitive interface. Dedicated quick-access buttons take you directly to the pages and settings you need. Pages like FishFinder, Structure, and Combo show sonar, mapping, and both together. WAYPOINT, MOB, and other hotkeys activate functions instantly. Customizable display options let you tailor the unit to your personal preferences.

Rugged Reliability

Engineered for real-world fishing conditions, the 5x series is seriously tough. The units boast waterproof IPX7 construction to handle getting splashed and even submerged in 1 meter of water for 30 minutes. They shrug off vibration, impact, and temperature extremes that stop lesser finders in their tracks. And the included transom and tilt/swivel gimbal mounts provide versatile, secure installation.

Network Capabilities

For enhanced fishfinding coverage, 5x models have built-in Ethernet networking. Link two compatible Lowrance units to share sonar data between the finders. Optional NMEA 2000 and NMEA 0183 connectivity let you monitor engine data, fuel level, and other systems. And they integrate seamlessly with Lowrance compasses, autopilots, and Outboard Pilot for complete boat control.

Mapping Unlocks Underwater Terrain

While the base 5x units come preloaded with U.S. Navionics chart data for coastal and inland waters, upgrading to the 5x Pro adds enhanced mapping capabilities. With an SD slot for dual microSD cards, you can load additional Navionics mapping for expanded coverage. Optional Lake Insight HD and C-MAP cards provide incredibly detailed 1-foot contours and depth shading for popular lakes.

Get the Best View Below

When you’re ready to upgrade from a traditional flasher-style fish finder and see the underwater world in greater detail, the feature-packed Lowrance Hook Reveal 5×55, Hook2 5x, and Hook2 5x Pro deliver. With CHIRP sonar and proven transducer technology like SplitShot, TripleShot, and Hook Reveal, these units reveal fish and structure at extended ranges. Intuitive operation, rugged reliability, and network integration make them versatile additions to small boats and kayaks. Whichever model fits your budget, the 5x series from Lowrance arms you with the sonar advantage to catch more fish.

Cover Accessories Like Transducer Mounts and Covers

Fishing enthusiasts know that having the right gear can make all the difference between an epic catch and an uneventful day on the water. One key piece of equipment for successful angling is a quality fish finder, which allows you to see below the surface and identify where the fish are. The Lowrance 5x series has long been a popular choice for its versatility, reliability, and affordability. But to get the most out of these units, it pays to accessorize them properly.

One of the most important accessories for your Lowrance 5x fish finder is a solid transducer mount. The transducer is the portion of the unit that sends and receives sonar signals below the hull, so it needs to be mounted securely. There are permanent mounts that are screwed into the hull, as well as temporary mounts like suction cups and trolling motor mounts. Consider where you’ll be placing your transducer and how portable you need it to be when selecting the right mounting option.

You’ll also want to safeguard the transducer itself with a protective transducer cover. These covers shield the transducer from impact, debris, and inclement weather when underway or docked. They’re usually made of tough ABS plastic and feature cutouts so as not to interfere with the transducer’s functionality. For kayak anglers, low-profile soft covers are also available to reduce drag.

In addition to mounts and covers, transducer accessories like fairing blocks and bonding putty can optimize signal transmission. Fairing blocks are tapered plastic wedges that correct the transducer angle for smoother water flow underneath. Bonding putty creates a watertight seal between the transducer and hull. And transducer arms allow flexible positioning to further dial in the transducer placement.

Protect the Display with Sun Covers and Screen Protectors

The fish finder display itself should also be properly outfitted to prevent costly damage. For starters, a sun cover will shade the display from harsh UV rays that can degrade the LCD screen over time. Most sun covers securely fasten to the unit while allowing easy access to the buttons and menus. They’re made of weather resistant neoprene or plastic in black or khaki to match fishing gear. Some covers even have pockets for storing small items like memory cards.

Below the sun cover, a screen protector provides an inexpensive sacrificial barrier against scratches and scrapes from bait knives, hooks, and other pointy objects. These thin overlays adhere directly to the glass display. They’re typically made from scratch-resistant PET plastic or tempered glass for optimal transparency and durability.

Extend Your Battery Life

Power management is also key for longevity and performance. Start with high-capacity rechargeable lithium ion battery packs to maximize run times. Choose batteries with at least 5000 mAh, and consider packing spares for all-day trips. Waterproof cases keep batteries secure and operable in wet conditions. And a 12/24V power adapter lets you charge your batteries on the go from a boat or vehicle power outlet.

A portable external battery pack is another handy backup power source. These pack thousands of mAh in a compact case about the size of a smartphone. They easily top up your fish finder’s internal battery via a USB cable. For added convenience, some double as an LED floodlight for night fishing excursions.

Cases and Bags for Protection on the Move

Quality bags and cases are a must for safeguarding your fish finder investment when traveling near and far. Hard-shell cases provide maximum impact protection and are waterproof, dustproof, and crushproof. Look for pre-cut dense foam inserts that securely cradle your finder. Soft-sided tackle bags offer more flexibility for gear organization. Interior dividers, pockets, and pouches keep items neatly stowed and accessible.

For kayak fishing, specialized kayak console bags strap directly to your vessel for on-board storage. They typically feature a clear touch screen-friendly front panel for easy operation while providing a secure watertight seal.

Extend Your Sonar View with Transducers

A great way to expand your fish-finding capabilities is upgrading to a dual frequency transducer. This gives you both high (200 kHz) and low (83 kHz) frequencies for detailed broadband scanning. The higher frequency provides sharp imaging at shallower depths up to around 100 feet, ideal for separating fish from structure and bait schools. Meanwhile, the lower frequency penetrates deeper to around 250 feet while covering more area.

For even wider sonar coverage, add a castable sonar sensor to your system. These compact wireless transducers pair with your 5x unit to cast out away from the boat. This allows you to spot fishable areas and structure not reachable by the onboard transducer alone. The data transmits back to your display for a complete underwater picture.

Customize Your View with Fish Finders Apps and Charts

To unlock the full potential of your Lowrance 5x fish finder, be sure to download the latest software updates. This gives you access to the newest available features and enhancements. Lowrance offers free downloads on their website to registered users. Their mobile app also lets you wirelessly pair smartphones and tablets to Lowrance units for an enhanced big screen view.

Mapping capabilities open up even more possibilities for maximizing your 5x series finder. Detailed Lake Insight charts provide 2D and 3D contour mapping for over 20,000 lakes across North America. Navionics offers dynamic navigational charting for coastal areas and rivers. These granular maps integrate with your sonar to help you identify the most promising fishing hotspots.

With the right accessories and upgrades, Lowrance 5x fish finders can take your angling abilities to the next level. Protect your investment with rugged mounts, covers, and cases. Extend battery life and sonar coverage for more efficient fishing. And tap into enhanced software, apps and maps to uncover the underwater details that lead to fishing success.

Summarize Key Benefits for Anglers of All Experience Levels

When venturing out on the water in search of the big catch, having a reliable fish finder can greatly improve your chances of success. The Lowrance 5x series offers a feature-packed sonar experience that appeals to novice and seasoned anglers alike. These units deliver excellent value for the money, with versatile capabilities to take your fishing to the next level.

For beginning fishermen, the 5x offers tremendous functionality in an easy-to-use package. The brightly lit LCD display and keypad controls provide intuitive access to all the settings. Simple menus and modes allow you to start scanning with minimal setup. And you don’t have to break the bank — the affordability makes the 5x series very approachable even for first-time buyers.

At the same time, more advanced capabilities create room to grow your skills over time. Downscan and sidescan sonars reveal detailed images of structure, bait, and fish. Mapping integration allows following Contour lines and navigation. And the dual-frequency transducer models widen your scanning possibilities. There’s plenty of power here for seasoned anglers looking to up their fish finding game.

Speaking of power, the 5x units are built to last all day on the water and for seasons to come. The rugged, waterproof housing withstands spray and splashes. The displays provide sunlight viewable screens with adjustable backlighting. And the transducers are constructed from tough nylon composites. Everything is designed for reliability and durability during heavy fishing use.

For versatility, the compact 5x finders can be mounted just about anywhere your fishing takes you. The quick-disconnect bracket offers flexible mounting options. Suction cup, trolling motor, and kayak mounts enable placing the display for optimal viewing. And portable power sources allow use away from your boat’s electrical system.

When using shore power, the 5x sips energy thanks to power-saving sleep modes. On-battery runtime reaches up to 30 hours on some models, ensuring you can scan all day and into the night. And rechargeable lithium battery packs mean you’re always ready for your next adventure.

Sonar coverage reaches depths up to 1000 feet on certain 5x models. This allows scanning the full water column to find where fish are staging. Sensitivity settings fine-tune your readings to your conditions, and interfacing with mapping uncovers the most promising areas. You’ll enhance your ability to discover fish.

The networked 5x models expand your possibilities by communicating wirelessly with smartphones and tablets. This lets you view sonar from multiple angles for complete underwater awareness. You can also easily share screenshots of your catch with fellow anglers.

For the investment, the Lowrance 5x series punches above its weight class, with versatile features, rugged reliability, and intuitive operation. Beginners will appreciate the easy learning curve and budget friendliness. Seasoned anglers will value the advanced capabilities and customization that help them fine tune their craft. For fishermen of all skill levels, the 5x has you covered.
