What is type 4 construction. Type 4 Construction: Understanding Heavy Timber Buildings and the 5 Types of Building Construction

What are the 5 types of building construction. How does Type 4 construction differ from other building types. Why is heavy timber construction unique in terms of fire resistance. What are the key features of Type 4 buildings.

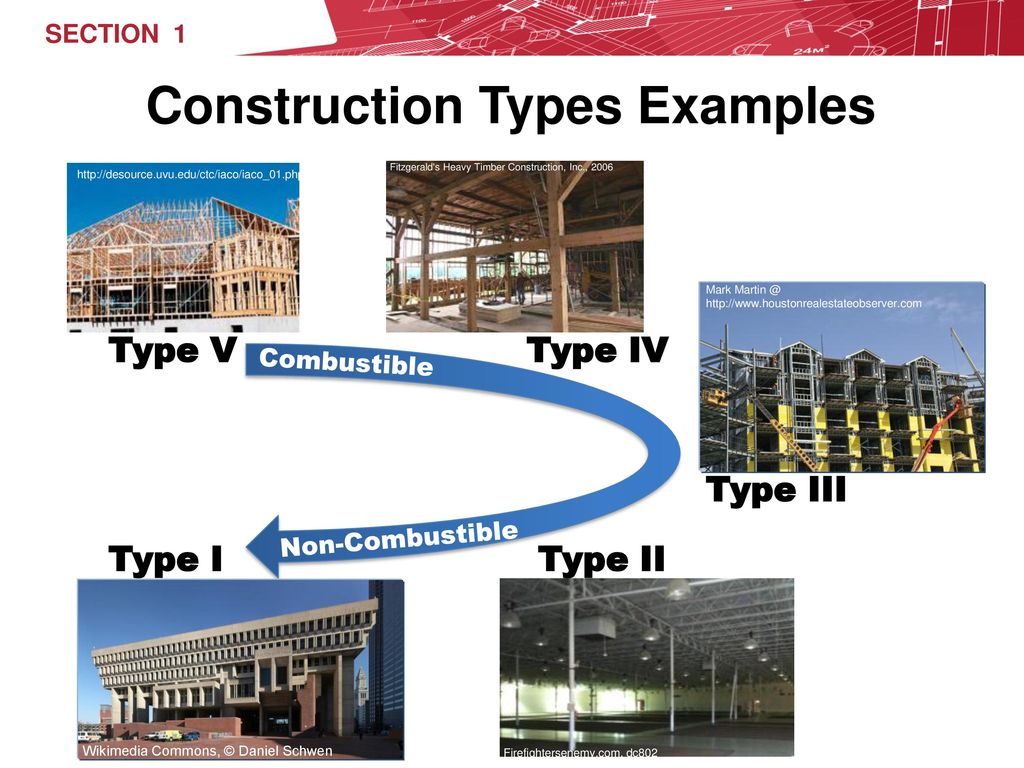

The 5 Types of Building Construction: A Comprehensive Overview

Building construction is a complex field with various classification systems. One of the most important categorizations is based on fire resistance levels. This system, known as the 5 Types of Building Construction, ranges from the most fire-resistant (Type I) to the least (Type V). Understanding these types is crucial for architects, engineers, firefighters, and anyone involved in the construction industry.

Fire Resistance: The Core of Building Classification

Fire resistance is the ability of a building and its components to withstand fire exposure for a specified period without losing structural integrity. This classification system helps ensure safety standards are met and guides firefighting strategies. Each type has specific requirements for materials, construction methods, and fire suppression systems.

Type I Construction: The Pinnacle of Fire Resistance

Type I construction, also known as fire-resistive, represents the highest standard in building fire safety. These structures are designed to withstand intense heat for extended periods without collapsing.

• Applicable to buildings over 75 feet tall
• Includes high-rise apartments, offices, and hotels
• Uses non-combustible materials throughout
• Features reinforced concrete and protected steel
• Often includes advanced HVAC and self-pressurizing stairwells

Why are Type I buildings so resistant to fire? The combination of non-combustible materials and advanced fire suppression systems creates a formidable defense against flames. This high level of protection, however, comes at a cost, making Type I buildings more expensive to construct.

Type II Construction: Non-Combustible Yet Vulnerable

Type II buildings, while also constructed with non-combustible materials, lack the extensive fire-resistive treatments found in Type I structures. This category often includes modern schools, shopping malls, and recently renovated commercial buildings.

Key Features of Type II Construction:

• Non-combustible walls, partitions, columns, floors, and roofs
• Typically features metal floors and roofs with masonry or tilt-slab walls
• Includes fire suppression systems
• More prone to collapse than Type I buildings

How do firefighters approach Type II buildings? Their primary focus is on ventilation to prevent dangerous temperature increases. This strategy is crucial due to the lack of fire-resistive coatings on structural elements.

Type III Construction: The Ordinary Yet Versatile

Type III construction, often referred to as ordinary or brick-and-joist structures, represents a middle ground in fire resistance. These buildings feature non-combustible exterior walls but may have combustible interior elements.

Characteristics of Type III Buildings:

• Exterior walls made of tilt-slab or reinforced masonry
• Interior structural elements may be wood or other combustible materials
• Can apply to both old and new buildings
• Older structures often have conventionally framed roofs
• Newer buildings typically use lightweight roof systems

What makes Type III construction unique? Its versatility allows for a wide range of applications, from schools to residential buildings. However, the potential for fire extension through connected attics or horizontal void spaces poses a challenge for firefighters.

Type IV Construction: The Heavy Timber Approach

Type IV construction, also known as heavy timber, is a distinctive category that combines the use of large lumber pieces with non-combustible elements. This construction type has a rich history and unique fire-resistant properties.

Defining Features of Type IV Buildings:

• Large lumber pieces connected with metal plates and bolts
• Wooden structural members must meet specific dimensional requirements
• Columns, beams, and girders must be at least 8 inches thick
• Roof and floor planks must be at least 6 inches thick
• Non-combustible exterior walls

Why do heavy timber buildings perform well in fires? The large size of the wooden members provides significant structural mass, making them more resistant to collapse. However, extinguishing fires in these buildings requires large volumes of water, and metal connections can lead to rapid fire spread.

Type V Construction: The Most Combustible Category

Type V construction, commonly known as wood-frame, represents the most combustible category in the building classification system. It is the only type that allows combustible materials in both exterior walls and structural members.

Key Aspects of Type V Buildings:

• Combustible exterior walls allowed
• Combustible structural members permitted
• Often used in residential construction
• Requires careful fire safety planning and prevention measures

Why is Type V construction still widely used despite its combustibility? Its cost-effectiveness and versatility make it a popular choice for many residential and small commercial projects. However, stringent fire safety measures are essential to mitigate risks associated with this construction type.

The Importance of Understanding Building Construction Types

Recognizing the different types of building construction is crucial for various professionals in the construction and safety industries. This knowledge impacts design decisions, building codes, firefighting strategies, and overall safety planning.

Implications for Different Stakeholders:

1. Architects and Engineers: Guide design choices and material selection
2. Firefighters: Inform tactical approaches and risk assessment
3. Building Inspectors: Ensure compliance with safety regulations
4. Insurance Companies: Assess risk and determine coverage
5. Property Owners: Understand maintenance needs and safety requirements

How does understanding these construction types benefit society as a whole? It leads to safer buildings, more effective emergency responses, and better-informed decision-making in urban planning and development.

Advancements in Building Construction Technology

The field of building construction is constantly evolving, with new technologies and materials emerging to enhance safety, efficiency, and sustainability. These advancements are influencing how we approach the traditional five types of construction.

Emerging Trends in Building Construction:

• Smart building systems for improved fire detection and suppression
• Advanced composite materials combining strength and fire resistance
• Modular construction techniques for faster, safer building assembly
• Green building practices integrating fire safety with sustainability
• 3D printing technology for creating complex, fire-resistant structures

How are these innovations changing the landscape of building construction? They’re blurring the lines between traditional construction types, creating hybrid structures that combine the best features of multiple categories. This evolution challenges industry professionals to stay informed and adapt their practices accordingly.

The Role of Building Codes and Regulations

Building codes and regulations play a crucial role in ensuring that structures of all types meet minimum safety standards. These codes are continuously updated to reflect new research, technologies, and best practices in fire safety and structural integrity.

Key Aspects of Building Codes:

1. Fire resistance ratings for materials and assemblies
2. Requirements for fire suppression systems
3. Egress and evacuation standards
4. Structural load requirements
5. Energy efficiency and sustainability guidelines

How do building codes impact the five types of construction? They set specific requirements for each type, influencing everything from material choices to building height limitations. Compliance with these codes is essential for ensuring public safety and obtaining necessary permits and approvals.

Challenges and Considerations in Modern Building Construction

As urban environments evolve and population densities increase, the construction industry faces new challenges in balancing safety, functionality, and cost-effectiveness. Each construction type presents its own set of considerations in this changing landscape.

Modern Challenges in Building Construction:

• Adapting to climate change and extreme weather events
• Incorporating sustainable and eco-friendly materials
• Balancing aesthetics with fire safety requirements
• Retrofitting older buildings to meet modern safety standards
• Addressing the unique needs of mixed-use developments

How are these challenges shaping the future of building construction? They’re driving innovation in materials science, design techniques, and construction methodologies. The industry is constantly seeking new ways to create safer, more resilient buildings that can withstand a variety of threats while meeting the diverse needs of modern society.

The Future of Building Construction: Trends and Predictions

As we look to the future, the field of building construction is poised for significant changes. Emerging technologies, environmental concerns, and changing societal needs are all influencing the direction of the industry.

Anticipated Trends in Building Construction:

1. Increased use of artificial intelligence in design and construction processes
2. Greater emphasis on resilient design to withstand natural disasters
3. Integration of renewable energy systems into building structures
4. Development of self-healing materials for improved longevity
5. Adoption of virtual and augmented reality in construction planning and execution

How will these trends impact the traditional five types of construction? While the fundamental principles of fire resistance and structural integrity will remain crucial, we can expect to see new hybrid categories emerge. These may combine the best aspects of different construction types with cutting-edge technologies to create buildings that are safer, more efficient, and more adaptable than ever before.

The field of building construction is dynamic and ever-evolving. From the fire-resistive Type I structures to the more combustible Type V buildings, each category plays a vital role in our built environment. As we continue to innovate and adapt to new challenges, understanding these fundamental construction types will remain essential for creating safe, sustainable, and functional spaces for generations to come.

What are the 5 Types of Building Construction?

If you’ve ever spent a night in the city and woke up to the sounds of screeching metal, then you’ve encountered construction. To those outside the industry, the process blurs together an intimidating collection of machines and parts.

But those working within it know the industry remains highly organized, broken down into specific types of construction and processes. Keep reading to find out more.

Table of Contents

Toggle

The 5 Types of Building Construction

• Apply for a construction degree at NEIT!

  Loading…

There are lots of different ways to classify construction projects and categorize buildings. Things are often broken up according to the owners, materials used, or types of structures. But there’s another way to divvy things up, and it revolves around the necessary level of fire resistance a building contains.

This list is called the 5 Types of Building Construction, with the first following the most stringent fire resistance requirements and the fifth following the least. Check out the list below for more information.

Type I Construction: Fire Resistive

This category applies to any building that stands over 75 feet tall. This applies to all high-rise housing and commercial space. That includes apartment buildings, offices, and hotels. These buildings are designed to withstand high temperatures for a long time without collapsing. Beyond that, all structural materials are non-combustible. Walls, floors, and roofs are constructed with reinforced concrete and protected steel. While these features make these buildings extremely durable, it also increases construction costs.

Some Type 1 buildings have HVAC systems and self-pressurizing stairwells to prevent fires from spreading. These building elements make it easier for firefighters to access and extinguish fires. When entering a Type 1 building, their main objective revolves around securing stairwells to ensure a safe evacuation.

Type II Construction: Non-Combustible

Similar to the Type 1 buildings, Type 2 buildings contain non-combustible walls, partitions, columns, floors, and roofs. Though these structures typically contain fire suppression systems, they are not often protected with fire-resistive coatings and are prone to collapse. They typically contain metal floors and metal roofs with masonry or tilt-slab walls.

Newer school buildings, shopping malls, and recently renovated commercial structures typically fall under this construction type. If firefighters are called to a Type 2 building, their main priority will be to ventilate the building to prevent a dangerous rise in temperature.

Check out our list of the best master’s programs  in construction management here.

Type III Construction: Ordinary

Also known as brick-and-joist structures, Type III buildings consist of either tilt-slap or reinforced masonry walls. These materials are non-combustible. That is to say, some of the interior structural elements (frames, floor, ceilings, etc.) are made with wood or combustible materials. This kind of construction can apply to both old and new buildings. Old buildings will generally contain conventionally framed roofs, while newer units are typically built with lightweight roof systems.

Schools, buildings, and houses can all fall under this construction type. One of the perks associated with this construction type is that ventilation is possible. That said, many Type III buildings contain connected attics or horizontal void spaces, making fire extension more likely.

Type IV Construction: Heavy Timber

Type IV buildings are largely constructed using large pieces of lumber, connected using metal plates and bolts. This was a common practice before 1960, which makes heavy timber construction so easy to spot. Old churches, factories, and barns typically fall under this category.

This building type demands that all wooden members meet specific dimensional requirements. Structural wood supports such as columns, beams, and girders must be at least 8 inches thick. Heavy planks for roofs and floors must be at least 6 inches thick. Type IV buildings have noncombustible exterior walls and interior elements.

Though these buildings contain combustible materials, they generally fare well when exposed to fire. Their structural mass also makes them more resilient against collapse. Still, firefighters will require large volumes of water to extinguish a fire in this type of building. Metal joint connections can also lead to a rapid increase in fire severity.

Type V Construction: Wood-Frame

Type V buildings are the most combustible construction type on this list. It is the only category of construction that allows combustible exterior walls as well as combustible structural members on the interior. Frames, walls, floors, and roofs are made entirely or partly out of wood. These building elements are cheaper to develop and increasingly common in the construction of single-family homes and garages.

These structural elements can be particularly worrisome to firefighters, as exposed wood offers no fire resistance. If a  fire starts, the building will ignite significantly. These buildings may be somewhat resistant to collapse unless it is a lightweight construction. In that case, it will collapse within minutes of a fire breaking out.

What is the International Building Code?

The International Building Code (IBC) governs the materials, systems, and assemblies used for structural fire resistance and fire-resistance related-construction. This is the resource we use to determine fire resistance ratings.

Each rating is measured in terms of the time a structural element can be exposed to fire before it collapses. So, for instance, a beam may be assigned a 2-hour fire rating. That means it can be exposed to fire for at least two hours. Materials with a fire rating of 0 will typically fail after less than an hour.

Fire Resistance Ratings, Defined

Each type of building construction is associated with different building elements, each of which varies in terms of fire resistance. The structural members associated with Type I construction generally receive three- to four-hour fire protection. The fire-resistance rating assigned to wood and other materials associated with Type IV and Type V construction often varies based on thickness. The American Wood Council’s National Design Specification for Wood Construction gives a nominal char rate of 1.5 inches of wood thickness per hour of fire resistance.

Read this article to find out what it’s like to work as a female construction worker.

FAQ

What tactics should ladder crews apply to the different types of construction?

Ladder crews have different procedures in place for different building types. When it comes to Type I construction, firefighters must be aggressive in securing stairwells and evacuating victims from the structure. With Type II construction, firefighters may consider opening skylights or resorting to natural ventilation. Depending on the roof system, they may also rely on similar ventilation operations for Type III and Type IV construction. Type V construction requires other alternatives, including but not limited to positive-pressure attacks.

What is the difference between Type A and Type B construction?

With the exception of Type IV construction, all tiers are divided into two subcategories: Type A and Type B. Type A refers to “protected” constructions, whereas Type B exists in reference to “unprotected” constructions. That is to say, Type A constructions offer more fire-resistant properties than Type B constructions.

What are the main types of construction?

In addition to the 5 types of building construction, there are different types of construction projects. These include residential building construction, industrial construction, commercial building construction, and heavy civil construction.

Conclusion

Understanding the differences between the five types of building construction is a necessary step towards a successful career in the field. If you’re interested in breaking into the construction industry, think about earning your degree from the New England Institution of Technology. We offer associate, bachelor, and master degree programs in building technology and construction management. You can fill out this form to learn more or call us at 401-467-7744.

Type IV | UpCodes

Type IV construction is that type of construction in which the building elements are mass timber or noncombustible materials and have fire-resistance ratings in accordance with Table 601. Mass timber elements shall meet the fire-resistance-rating requirements of this section based on either the fire-resistance rating of the noncombustible protection, the mass timber, or a combination of both and shall be determined in accordance with Section 703.2. The minimum dimensions and permitted materials for building elements shall comply with the provisions of this section and Section 2304.11. Mass timber elements of Types IV-A, IV-B and IV-C construction shall be protected with noncombustible protection applied directly to the mass timber in accordance with Sections 602.4.1 through 602. 4.3. The time assigned to the noncombustible protection shall be determined in accordance with Section 703.6 and comply with Section 722.7.

Cross-laminated timber shall be labeled as conforming to ANSI/APA PRG 320 as referenced in Section 2303.1.4.

Exterior load-bearing walls and nonload-bearing walls shall be mass timber construction, or shall be of noncombustible construction.

Exception: Exterior load-bearing walls and nonload-bearing walls of Type IV-HT Construction in accordance with Section 602.4.4.

The interior building elements, including nonload-bearing walls and partitions, shall be of mass timber construction or of noncombustible construction.

Exception: Interior building elements and nonload-bearing walls and partitions of Type IV-HT construction in accordance with Section 602.4.4.

Combustible concealed spaces are not permitted except as otherwise indicated in Sections 602.4.1 through 602.4.4. Combustible stud spaces within light frame walls of Type IV-HT construction shall not be considered concealed spaces, but shall comply with Section 718.

In buildings of Type IV-A, IV-B, and IV-C construction with an occupied floor located more than 75 feet (22 860 mm) above the lowest level of fire department access, up to and including 12 stories or 180 feet (54 864 mm) above grade plane, mass timber interior exit and elevator hoistway enclosures shall be protected in accordance with Section 602.4.1.2. In buildings greater than 12 stories or 180 feet (54 864 mm) above grade plane, interior exit and elevator hoistway enclosures shall be constructed of noncombustible materials.

602.4.1.1 Exterior Protection

The outside face of exterior walls of mass timber construction shall be protected with noncombustible protection with a minimum assigned time of 40 minutes, as specified in Table 722.7.1(1). Components of the exterior wall covering shall be of noncombustible material except water-resistive barriers having a peak heat release rate of less than 150kW/m², a total heat release of less than 20 MJ/m² and an effective heat of combustion of less than 18MJ/kg as determined in accordance with ASTM E1354 and having a flame spread index of 25 or less and a smoke-developed index of 450 or less as determined in accordance with ASTM E84 or UL 723. The ASTM E1354 test shall be conducted on specimens at the thickness intended for use, in the horizontal orientation and at an incident radiant heat flux of 50 kW/m².

602.4.1.2.1 Protection Time

Noncombustible protection shall contribute a time equal to or greater than times assigned in Table 722.7.1(1), but not less than 80 minutes. The use of materials and their respective protection contributions specified in Table 722.7.1(2) shall be permitted to be used for compliance with Section 722.7.1.

602.4.1.5 Concealed Spaces

Concealed spaces shall not contain combustibles other than electrical, mechanical, fire protection, or plumbing materials and equipment permitted in plenums in accordance with Section 602 of the International Mechanical Code, and shall comply with all applicable provisions of Section 718. Combustible construction forming concealed spaces shall be protected in accordance with Section 602.4.1.2.

602.4.2.1 Exterior Protection

The outside face of exterior walls of mass timber construction shall be protected with noncombustible protection with a minimum assigned time of 40 minutes, as specified in Table 722. 7.1(1). Components of the exterior wall covering shall be of noncombustible material except water-resistive barriers having a peak heat release rate of less than 150kW/m², a total heat release of less than 20 MJ/m² and an effective heat of combustion of less than 18MJ/kg as determined in accordance with ASTM E1354, and having a flame spread index of 25 or less and a smoke-developed index of 450 or less as determined in accordance with ASTM E84 or UL 723. The ASTM E1354 test shall be conducted on specimens at the thickness intended for use, in the horizontal orientation and at an incident radiant heat flux of 50 kW/m².

602.4.2.2.1 Protection Time

Noncombustible protection shall contribute a time equal to or greater than times assigned in Table 722.7.1(1), but not less than 80 minutes. The use of materials and their respective protection contributions specified in Table 722.7.1(2) shall be permitted to be used for compliance with Section 722. 7.1.

602.4.2.2.4 Separation Distance Between Unprotected Mass Timber Elements

In each dwelling unit or fire area, unprotected portions of mass timber walls and ceilings shall be not less than 15 feet (4572 mm) from unprotected portions of other walls and ceilings, measured horizontally along the ceiling and from other unprotected portions of walls measured horizontally along the floor.

602.4.2.5 Concealed Spaces

Concealed spaces shall not contain combustibles other than electrical, mechanical, fire protection, or plumbing materials and equipment permitted in plenums in accordance with Section 602 of the International Mechanical Code, and shall comply with all applicable provisions of Section 718. Combustible construction forming concealed spaces shall be protected in accordance with Section 602.4.1.2.

602.4.3.1 Exterior Protection

The exterior side of walls of combustible construction shall be protected with noncombustible protection with a minimum assigned time of 40 minutes, as determined in Table 722. 7.1(1). Components of the exterior wall covering shall be of noncombustible material except water-resistive barriers having a peak heat release rate of less than 150 kW/m², a total heat release of less than 20 MJ/m² and an effective heat of combustion of less than 18 MJ/kg as determined in accordance with ASTM E1354 and having a flame spread index of 25 or less and a smoke-developed index of 450 or less as determined in accordance with ASTM E84 or UL 723. The ASTM E1354 test shall be conducted on specimens at the thickness intended for use, in the horizontal orientation and at an incident radiant heat flux of 50 kW/m².

602.4.3.5 Concealed Spaces

Concealed spaces shall not contain combustibles other than electrical, mechanical, fire protection, or plumbing materials and equipment permitted in plenums in accordance with Section 602 of the International Mechanical Code, and shall comply with all applicable provisions of Section 718. Combustible construction forming concealed spaces shall be protected with noncombustible protection with a minimum assigned time of 40 minutes, as specified in Table 722. 7.1(1).

VUS pipes tape-polymer coating design No. 4, No. 16

VUS pipes tape-polymer coating anti-corrosion insulation VUS pipes polylen 40-LI-63 GOST 9.602-2016 design No. 4 (3 layers), pipe in insulation VUS GOST R 51164-98 design No. 16, pipe in US GOST R51164-98 design No. 15 (2 layers)

Protective coating for steel pipes of a very reinforced type based on polyethylene adhesive tape (film 40-LI-63) design No. 4, No. 16, No. 15 GOST 9.602-2016, GOST R 51164-98

1 layer – primer NK-50 (1 layer, thickness mm)
2 layer – POLYLEN 40-LI-63 film (2 layers, thickness mm)
3 layer – outer layer wrap 40-OB-63 (1 layer, thickness mm)

Designation	Nominal diameter steel pipe, dy, mm	Minimum wall thickness steel pipe , s, mm	Minimum thickness of insulating coating, s,mm	PRICE for p/m with VAT
Insulated pipe VUS Ø 57	50	3. 5	1.8	on request
Insulated pipe VUS Ø 76	65	3.5	1.8	on request
Insulated pipe VUS Ø 89	80	3.5	1.8	on request
Insulated pipe VUS Ø 108	100	3.5	1.8	on request
Insulated pipe VUS Ø 133	125	4.0	1.8	on request
Insulated pipe VUS Ø 159	150	4.0	1.8	on request
Insulated pipe VUS Ø 219	200	5.0	1.8	on request
Insulated pipe VUS Ø 273	250	5.0	1.8	on request
Insulated pipe VUS Ø 325	300	6.0	1.8	on request
Insulated pipe VUS Ø 377	350	6. 0	1.8	on request
Insulated pipe VUS Ø 426	400	6.0	1.8	on request
Insulated pipe VUS Ø 530	500	7.0	1.8	on request
Insulated pipe VUS Ø 630	600	8.0	1.8	on request
Insulated pipe VUS Ø 720	700	8.0	1.8	on request
Insulated pipe VUS Ø 820	800	9.0	1.8	on request
Insulated pipe VUS Ø 920	900	9.0	1.8	on request
Insulated pipe VUS Ø 1020	1000	10.0	1.8	on request

* Length of pipes in VUS insulation based on polyethylene adhesive tape POLYLEN 40-LI-63 from 6 m to 12 m, pipe ends are not insulated.

Insulation application vus:

Tape-polymer coating VUS insulation POLYLEN – a three-component system for anti-corrosion insulation of main pipelines, oil pipelines, gas pipelines at temperatures from -60° to +50°. In the polymer-tape coating system, the functions of the insulating tape and the protective wrap are different. Insulating tape (POLYLENE 40-LI-63) provides adhesion of the coating to steel (not less than 2 kg / cm of width), resistance to cathodic flaking, acts as a protective barrier that prevents water, soil electrolyte, oxygen from penetrating to the pipe surface, i.e. . corrosive agents.
Protective wrap (40-OB-63) serves mainly to increase the mechanical, impact strength of the coating. The wrap (40-OB-63) protects the tape coating from damage when laying the pipeline in a trench and backfilling it with soil, as well as during soil shrinkage and pipeline technological advances.

Benefits of tape coatings include:

• high manufacturability of their application to pipes in the factory and highway conditions,
• good dielectric characteristics,
• low moisture and oxygen permeability and a fairly wide temperature range of application.

The main disadvantages of design #4 coating are:

• low resistance to shear under the influence of soil settlement,
• insufficiently high impact resistance of coatings,
• low biostability of the adhesive sublayer of the coating.

NEVA-FARVATER” has the ability to insulate steel pipes (electrically welded and seamless) with an external coating of anti-corrosion insulation VUS: POLYMER TAPE coating, and also delivers pipeline components (steel bend, tee, transition, etc.) from a warehouse in Petersburg. You can get any products from the warehouse yourself or use the delivery service.

Buy (order), please indicate the design number, for which environment you need a pipe in insulation VUS GOST 9.602-2016, at affordable prices, it is profitable, quickly on order and possibly from stock in St. Petersburg.

Together with pipes in VUS insulation, you can purchase: MBR mastic, bituminous primer (PRIMER), pipeline parts, etc.

from the website [email protected] or by phone. 8(921) 642-84-32

Back>>>

VUS pipe design No. 16 and No. 15 GOST R 51164-98, design No. 4 GOST 9.602-2005 Polymer tape

Good day. SIS LLC is glad to welcome you on the pages of our website.

VUS (Highly Reinforced Layer) design 4, 16 and US (Reinforced Layer) design 5, 15 steel pipes based on polymer adhesive tape is a reliable hydro and anti-corrosion protection of steel pipeline from rust and decay. Insulated steel pipes with a polyethylene tape coating are manufactured at the factory in accordance with GOST 9.602-2005 (download GOST 9.602-2005) and GOST R 51164-98 (download GOST R 51164-98) in compliance with all technological standards and cycles, which is confirmed by the manufacturer’s certificate and product passport. Protective anti-corrosion coating VUS and US is applied to steel pipes (electronic welded seam, electric welded spiral seam, seamless hot rolled pipes) both on new and used refurbished BU.

Return to the pipe section in VUS insulation.

Leave an order for VUS pipe con. No. 4, No. 15 and No. 16 E-mail: [email protected], [email protected]

VUS pipes design No. 4 GOST 9.602-2005, No. 16 GOST R 51164-98 and US No. 15 GOST R 51164-98

Description	Price	Diameter H/N	Thickness mm
			Walls	Coatings
Pipes in VUS design. 4, 16 tape-polymer D57	calculation	DN50 / d57	3.0 – 4.0	8.0
Pipes in VUS design. 4, 16 tape-polymer D76	calculation	DN65 / d76	3.0 – 4.0	8. 0
Pipes in VUS design. 4, 16 tape-polymer D89	calculation	DN80 / d89	3.0 – 5.0	8.0
Pipes in VUS design. 4, 16 tape-polymer D108	calculation	DN100 / d108	3.0 – 5.0	8.0
Pipes in VUS design. 4, 16 tape-polymer D114	calculation	DN100 / d114	3.0 – 5.0	8.0
Pipes in VUS design. 4, 16 tape-polymer D133	calculation	DN125 / d133	4.0 – 6.0	8.0
Pipes in VUS design. 4, 16 tape-polymer D159	calculation	DN150 / d159	4.0 – 6.0	8.0
Pipes in VUS design. 4, 16 tape-polymer D219	calculation	DN200 / d219	5.0 – 7.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D273	calculation	DN250 / d273	6. 0 – 7.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D325	calculation	DN300 / d325	7.0 – 8.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D377	calculation	DN350 / d377	7.0 – 10.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D426	calculation	DN400 / d426	7.0 – 10.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D530	calculation	DN500 / d530	7.0 – 12.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D630	calculation	DN600 / d630	8.0 – 12.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D720	calculation	DN700 / d720	8.0 – 12.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D820	calculation	DN800 / d820	8. 0 – 12.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D920	calculation	DN900 / d920	8.0 – 12.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D1020	calculation	DN1000 / d1020	9.0 – 14.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D1220	calculation	DN1200 / d1220	9.0 – 14.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D1420	calculation	DN1400 / d1420	10.0 – 16.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D1620	calculation	DN1600 / d1620	10.0 – 16.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D1720	calculation	DN1700 / d1720	10.0 – 16.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D1820	calculation	DN1800 / d1820	12. 0 – 18.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D2020	calculation	DN2000 / d2020	12.0 – 18.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D2220	calculation	DN2200 / d2240	12.0 – 18.0	10.0
Pipes in VUS design. 4, 16 tape-polymer D2420	calculation	DN2400 / d2420	12.0 – 20.0	10.0

Tape coating based on adhesive polymer tape Polylen is produced in two types:

1. US – Reinforced Layer or reinforced type. Construction No. 15 – 2a layers
2. VUS – Highly Reinforced Layer or Highly Reinforced Type. Construction #4, 5, 16 – 3 layers

Apply tape – polymer insulation on steel pipelines with a diameter of 57mm to 2440mm. and pipe lengths from 6.0m to 12.0m.

Today, the polyethylene tape protective coating (POLYLEN tape) Design No. 4, 5, 16, 15 of the steel pipeline is the most popular and widespread in the engineering and construction market. The waterproofing coating of VUS and US with POLYLEN polymer tape surpasses the coating of bitumen and other materials in several indicators:

• Most resistant to external mechanical properties;
• Low degree of water permeability and water absorption;
• High adhesion to steel;
• Service life without emergency use over 40-50 years;
• High contact resistance guarantees high efficiency in cathodic protection;
• For both underground and underwater applications;
• Long-term operation at -60*С to +50*С.

The total thickness of the insulating layer is 8.0-10.0 mm, which corresponds to GOST 9.602-2005 (Unified system of protection against corrosion and aging. Protective coatings of a very reinforced type and GOST R 51164-98 (Main steel pipelines. General requirements for corrosion protection).

Steel pipes with an external anti-corrosion hydroprotective coating based on POLYLEN VUS polymer adhesive tape are used in the construction of main pipelines and branches from them, when laying inter-settlement low-pressure pipelines, urban gas, water and sewer networks, and utility pipelines. Reinforced insulation based on polymer adhesive tape is an effective and priority method of protecting steel pipelines from corrosion in world practice.

Compared to mastic-bitumen construction 7 insulation and other coatings, the technology of applying polymeric adhesive tape and the possibility of step-by-step control during the application of insulation at the factory make it possible to achieve significantly higher quality indicators of the coating, which contributes to long and without emergency operation of pipelines.

STRUCTURE of a three-layer waterproofing protective coating VUS and US based on polyethylene adhesive tape POLYLEN 40-LI-63 Design No. 4, 16, 15 GOST 9.602-89, GOST 51164-98

1. layer – primer NK-50 primer (1 layer) – thickness 1-6mm.
2. layer – POLYLENE 40-LI-63 film (2 layers) – thickness 0.3-2.7 mm.
3. layer – outer layer wrapper 40-OB-63 (1 layer) – thickness 2.2-3.5 mm.

Total insulation thickness 2. 5 – 10.0mm.

Pipes with VUS three-layer insulation are used when laying networks with a carrier temperature from -40°С to +60°С. VUS polymer insulation has not lost its main characteristics for 50 years. Production technology and materials used meet the requirements of GOST 51164-98, GOST 9.602-2005. It is possible to use steel pipes in insulation of a very reinforced type with polyethylene adhesive tape for sewerage and wastewater.

Together with insulated pipes VUS konstr. No. 4, 16, 15 GOST 9.602-2005, GOST R 51164-98 with a coating based on polymer tape, POLYLEN wrap and primer NK-50 to protect steel pipelines from rust, they buy rolled metal products, insulation materials, pipeline fittings, pipeline supports, steel pipes and polymer pipes, shaped parts of pipelines and fittings.

Over the years of successful work, Engineering Supply Systems LLC has gained invaluable experience, as evidenced by the flattering reviews of our customers. You can see photos of SIS LLC in the “Photo Gallery” section.
