What are temperature sensors. How do different types of temperature sensors work. What are the applications of temperature sensors. Which temperature sensor is best for high accuracy measurements. How do thermistors differ from RTDs.
Understanding Temperature Sensors: Types and Functionality
Temperature sensors are essential devices in various industries and applications, designed to detect and measure thermal energy in a given medium. These sensors convert temperature readings into electrical signals, allowing for precise monitoring and control of temperature-dependent processes. Let’s explore the different types of temperature sensors and their working principles.
What is a Temperature Sensor?
A temperature sensor is a device that detects and measures the average heat or thermal energy in a medium and converts it into an electrical signal. This conversion allows for easy integration with electronic systems for monitoring, control, and data analysis purposes.

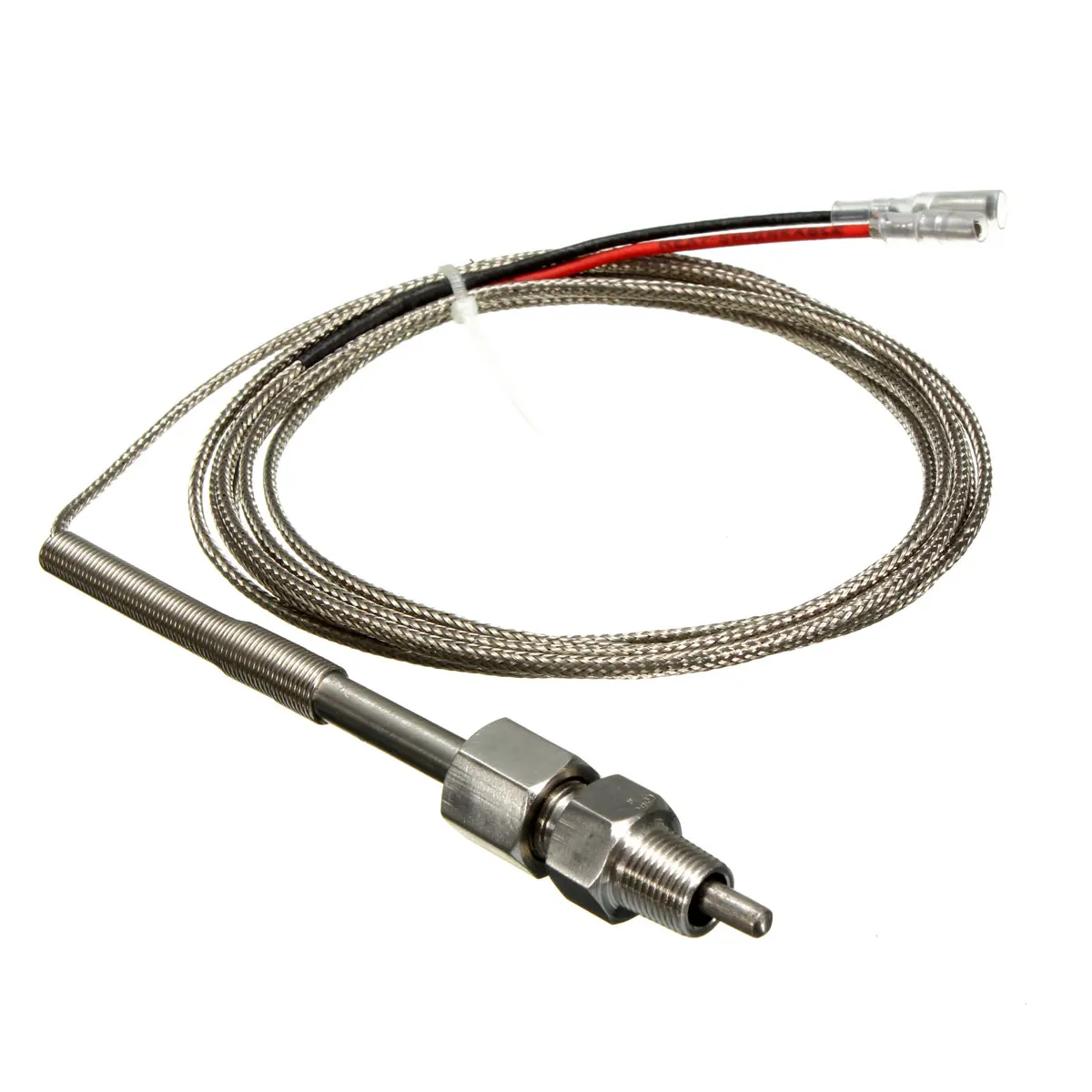

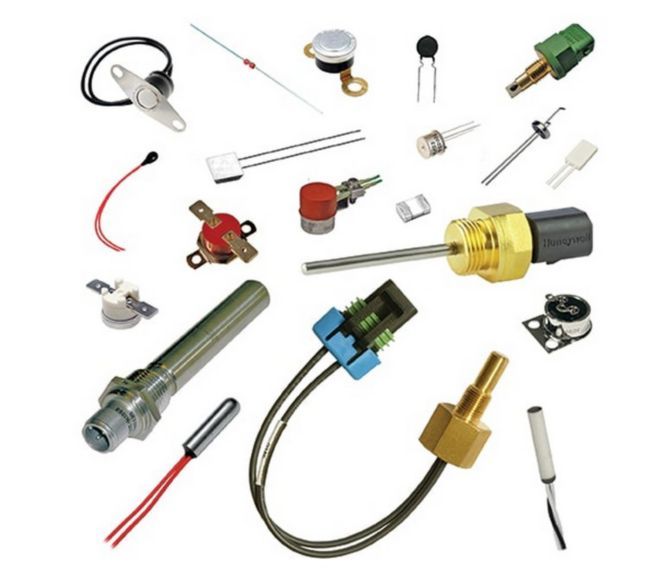

Types of Temperature Sensors
There are several types of temperature sensors available, each with its own unique characteristics and applications:
- Thermistors (NTC and PTC)
- Resistance Temperature Detectors (RTDs)
- Digital Temperature Indicators
- Thermocouples
- Infrared Sensors
- Semiconductor-based Sensors
In this article, we’ll focus on the first three types, which are commonly offered by manufacturers like Littelfuse.
Thermistors: NTC and PTC Explained
Thermistors are thermally sensitive resistors that exhibit a significant, predictable, and precise change in electrical resistance when subjected to temperature variations. There are two main types of thermistors:
Negative Temperature Coefficient (NTC) Thermistors
NTC thermistors display a decrease in electrical resistance as the temperature increases. This inverse relationship between temperature and resistance makes them ideal for applications requiring high sensitivity in a specific temperature range.
Positive Temperature Coefficient (PTC) Thermistors
PTC thermistors, on the other hand, exhibit an increase in electrical resistance as the temperature rises. This direct relationship between temperature and resistance makes them suitable for applications such as overcurrent protection and self-regulating heating elements.
Why are thermistors popular in many applications? Thermistors offer excellent long-term stability and cost-effectiveness, making them advantageous for various temperature measurement and control applications.
Resistance Temperature Detectors (RTDs): Precision and Linearity
Platinum Resistance Temperature Detectors (RTDs) are temperature sensors known for their high accuracy and nearly linear response to temperature changes. How do RTDs work?
RTDs exhibit a positive, predictable, and almost linear change in resistance when subjected to temperature variations. This characteristic makes them ideal for applications requiring high precision over a wide temperature range.
Advantages of RTDs
- Very high accuracy (up to 0.06% or 0.15°C)
- Nearly linear output over a wide temperature range
- Excellent stability and repeatability
- Suitable for specialized applications requiring precise measurements
When would you choose an RTD over a thermistor? RTDs are preferred in applications where high accuracy and stability are crucial, such as in industrial processes, laboratory equipment, and aerospace systems.
Digital Temperature Indicators: Simplifying Temperature Monitoring
Digital Temperature Indicators offer a straightforward approach to temperature sensing. These devices have a positive relationship between resistance and temperature, providing a digital-like response to temperature changes.
How do Digital Temperature Indicators work?
Digital Temperature Indicators operate on a threshold principle. Below a specific trip temperature, the sensor maintains a low resistance state. Once the temperature exceeds the trip point, the resistance increases dramatically, creating a clear on/off signal.
This binary-like behavior makes Digital Temperature Indicators ideal for applications requiring simple temperature threshold detection, such as:
- Overtemperature protection circuits
- Thermal management in electronic devices
- HVAC system controls
- Automotive temperature monitoring
Applications of Temperature Sensors
Temperature sensors find applications across a wide range of industries and sectors. Here are some common areas where these sensors play a crucial role:
Industrial Process Control
In manufacturing and industrial settings, temperature sensors are used to monitor and control various processes, ensuring product quality and operational efficiency.
Automotive Industry
Temperature sensors are essential in vehicles for monitoring engine temperature, cabin climate control, and battery management in electric vehicles.
Healthcare and Medical Devices
From digital thermometers to advanced medical imaging equipment, temperature sensors are vital in healthcare applications.
Consumer Electronics
Smartphones, laptops, and other electronic devices use temperature sensors for thermal management and protection against overheating.
HVAC Systems
Heating, ventilation, and air conditioning systems rely on temperature sensors to maintain comfortable indoor environments and optimize energy efficiency.
Food and Beverage Industry
Temperature sensors ensure food safety during processing, storage, and transportation by monitoring critical temperature points.
Environmental Monitoring
Weather stations and climate research utilize temperature sensors to collect data on atmospheric and environmental conditions.
Choosing the Right Temperature Sensor
Selecting the appropriate temperature sensor for a specific application involves considering several factors:
Temperature Range
What is the expected temperature range for your application? Different sensor types have varying operating ranges, so it’s crucial to choose one that covers your required temperature span.
Accuracy Requirements
How precise do your temperature measurements need to be? RTDs generally offer higher accuracy than thermistors, but they may be more expensive.
Response Time
Do you need rapid temperature readings? Some sensors respond more quickly to temperature changes than others.
Environmental Conditions
Consider factors such as humidity, vibration, and chemical exposure that may affect the sensor’s performance and longevity.
Size and Form Factor
The physical dimensions and shape of the sensor may be critical in some applications, especially in compact or space-constrained designs.
Cost Considerations
Balance the performance requirements with budget constraints. Thermistors are often more cost-effective for general applications, while RTDs may be justified for high-precision needs.
Advancements in Temperature Sensing Technology
The field of temperature sensing continues to evolve, with new technologies and improvements enhancing the capabilities of these crucial devices. Some recent advancements include:
Miniaturization
Manufacturers are developing smaller sensors without compromising accuracy, allowing for integration into increasingly compact devices.
Improved Materials
New materials and manufacturing techniques are enhancing the stability, accuracy, and temperature range of sensors.
Smart Sensors
Integration of microprocessors and communication interfaces is enabling “smart” temperature sensors that can perform on-board processing and directly interface with digital systems.
Wireless Connectivity
The rise of IoT (Internet of Things) has led to the development of wireless temperature sensors, facilitating remote monitoring and data collection.
Multi-parameter Sensing
Some advanced sensors can measure multiple parameters simultaneously, such as temperature, humidity, and pressure, providing more comprehensive environmental data.
Maintaining and Calibrating Temperature Sensors
To ensure accurate and reliable temperature measurements, proper maintenance and calibration of sensors are essential. Here are some key considerations:
Regular Calibration
Periodic calibration helps maintain sensor accuracy over time. The frequency of calibration depends on the sensor type, application, and regulatory requirements.
Proper Installation
Correct installation is crucial for accurate readings. Ensure good thermal contact and proper positioning of the sensor within the medium being measured.
Environmental Protection
Protect sensors from harsh environmental conditions that could affect their performance or lifespan, such as extreme temperatures, moisture, or corrosive substances.
Handling and Storage
Handle sensors carefully to avoid physical damage, and store them in appropriate conditions when not in use to prevent degradation.
Documentation
Maintain records of calibration, maintenance, and any observed deviations to track sensor performance over time and facilitate troubleshooting.
By following these guidelines, you can ensure that your temperature sensors continue to provide accurate and reliable measurements throughout their operational life.
